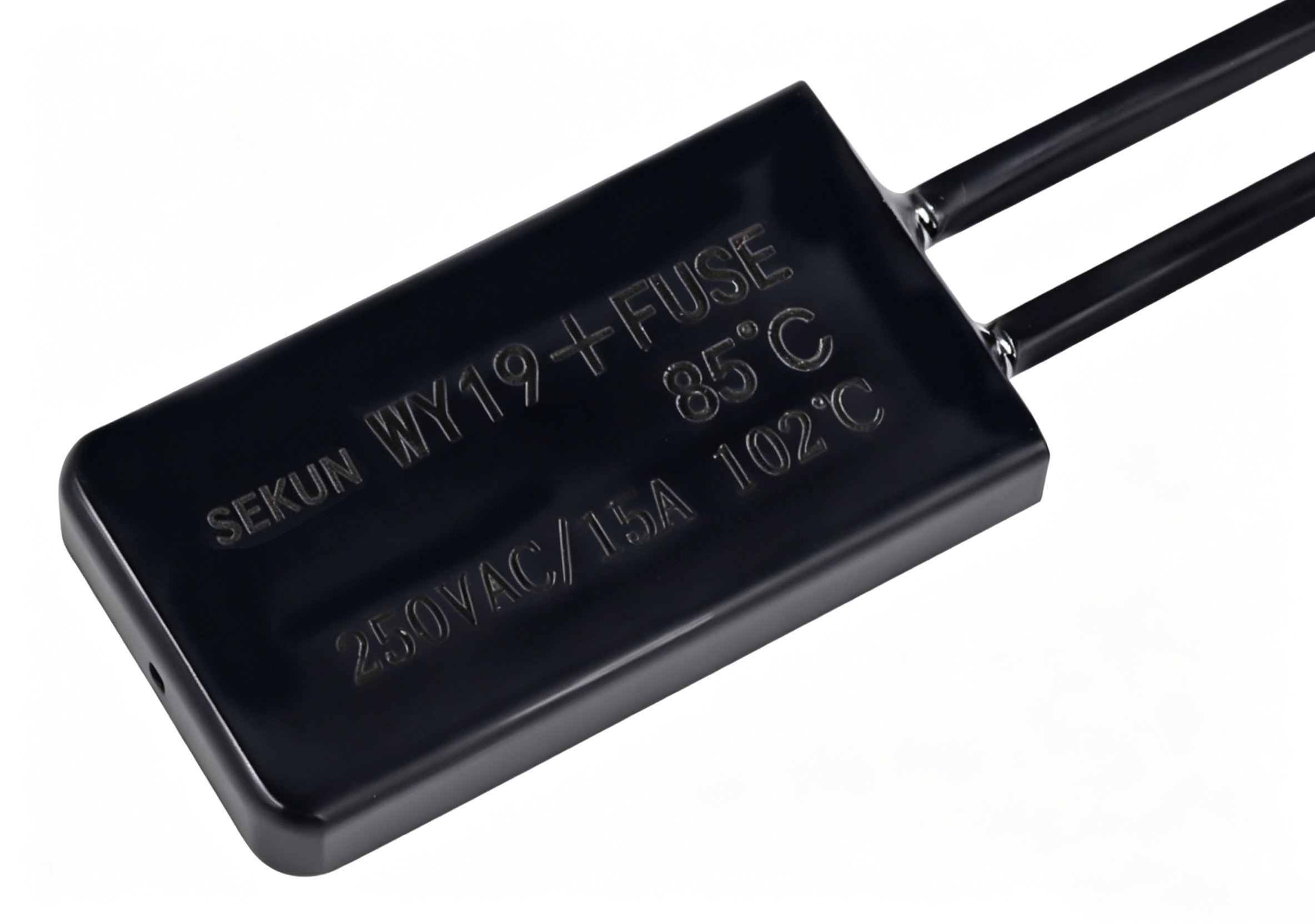

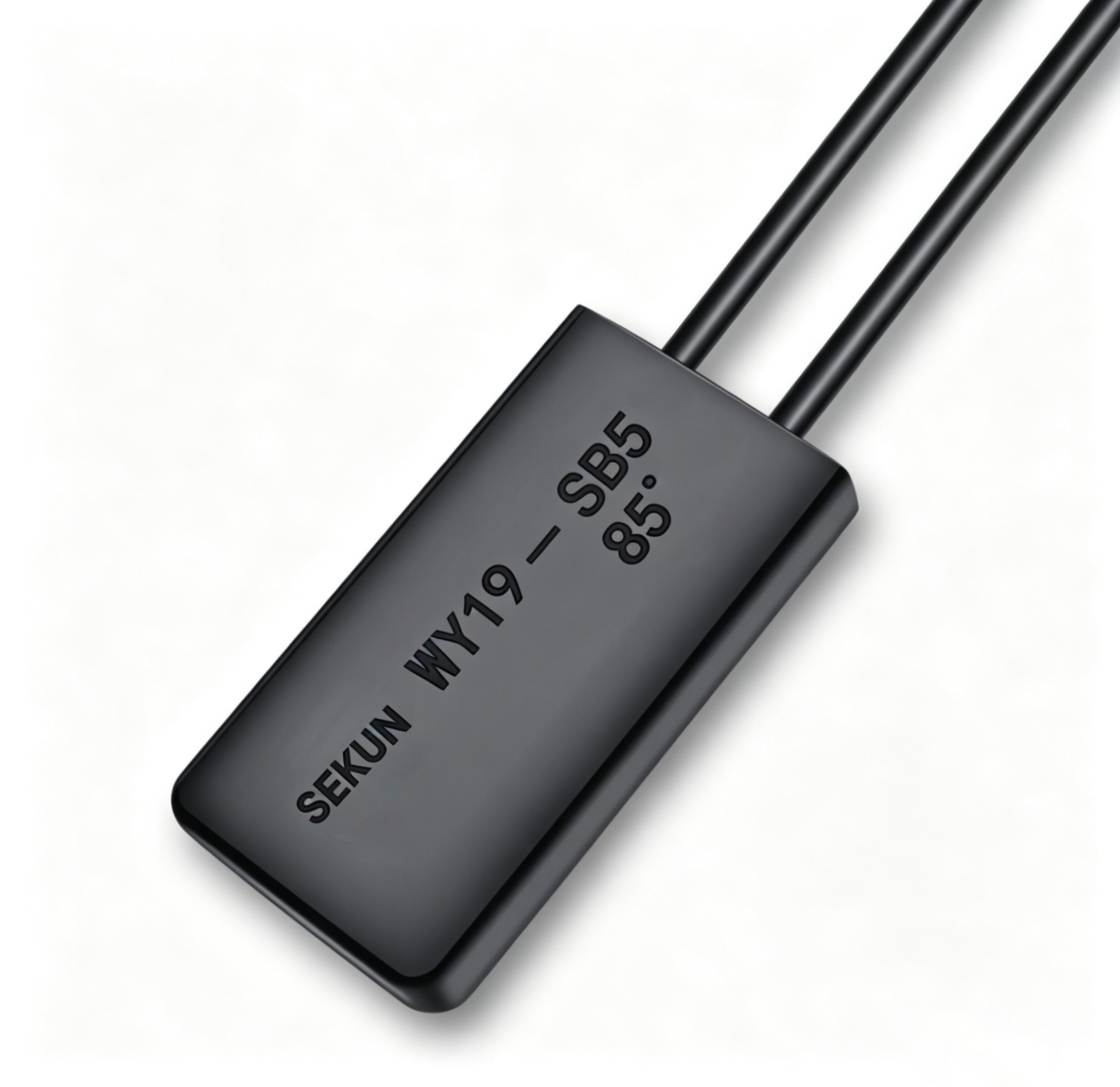

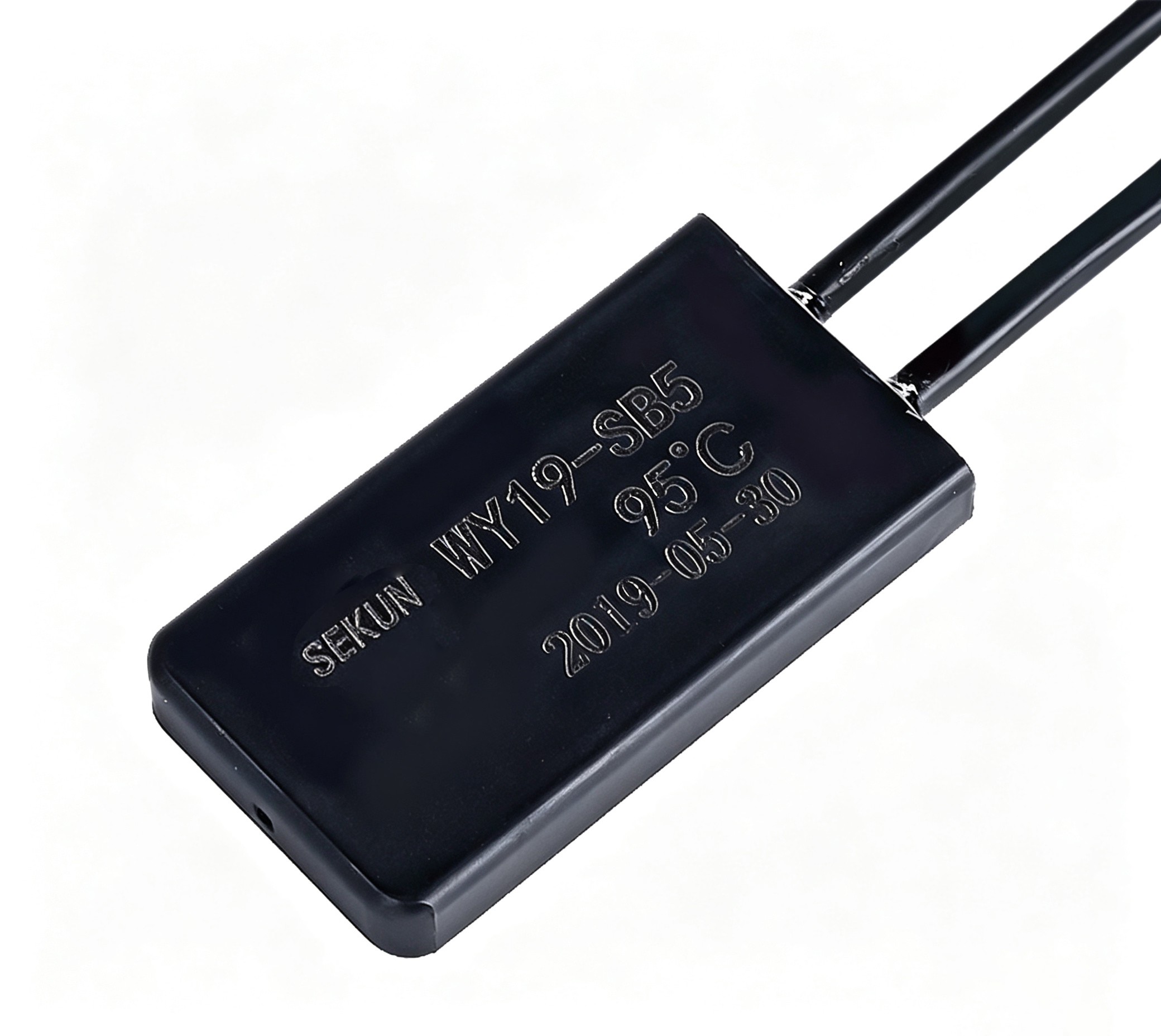

WY19 Temperature + Fuse Integrated Heating Mat Thermostat
WY19 Temperature + Fuse Integrated Heating Mat Thermostat
The WY19-SB5 series protector (Standard, High-Current, and Ultra-Thin variants) is a thermal and overcurrent protection device. It features a compact size, high contact rating, and a fast trip response. This protector is primarily used for overtemperature and overcurrent protection in motors, lighting fixtures, and small household
Focused on R&D and Manufacturing
Full range of product certifications
Serving global customers
Navigation
Related products
Send Us A Message
Product Features
Pure temperature sensing, no current effect;
Each trip temperature is strictly calibrated and tested;
100% of bimetallic strips ensure fast trip performance;
Wire crimping with various specifications and lengths available per customer requirements.

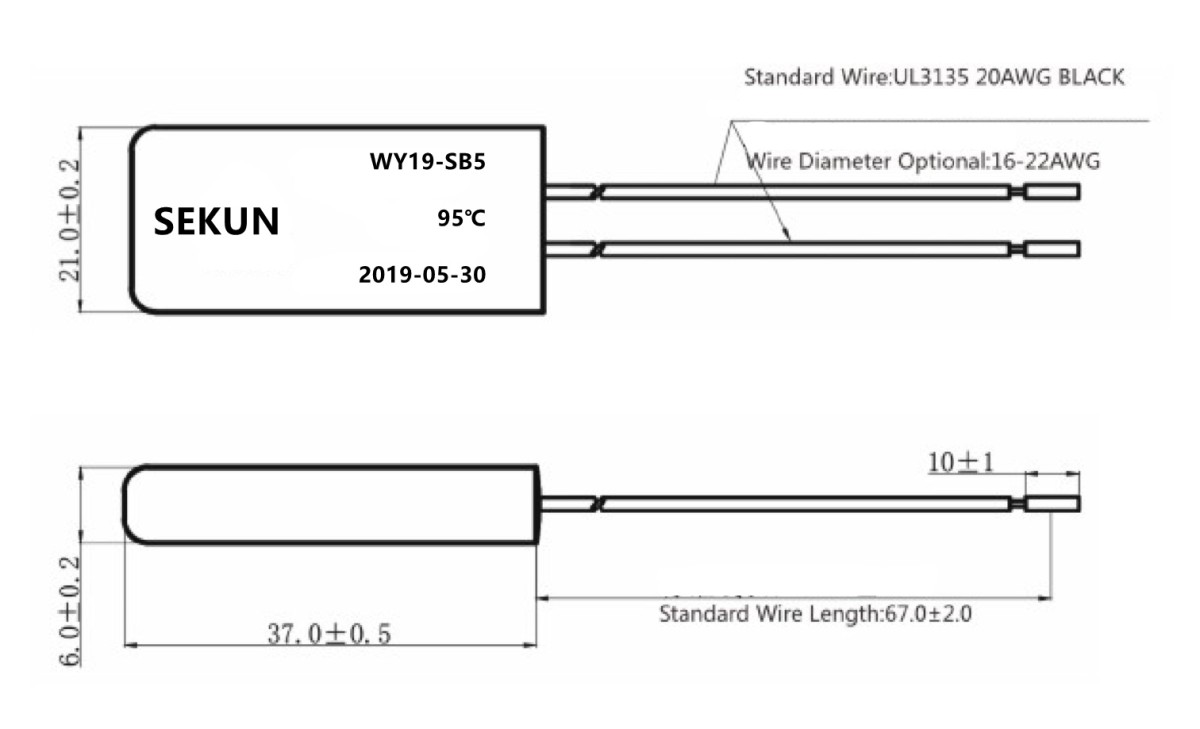

Dimensional Drawing
Electric Specifications
20A / 16V DC
10A / 250V AC
20A / 125V AC
Applications
Heated Seat Cushions
Electric Blankets
Pet Heating Pads
Temperature Range and Tolerance
