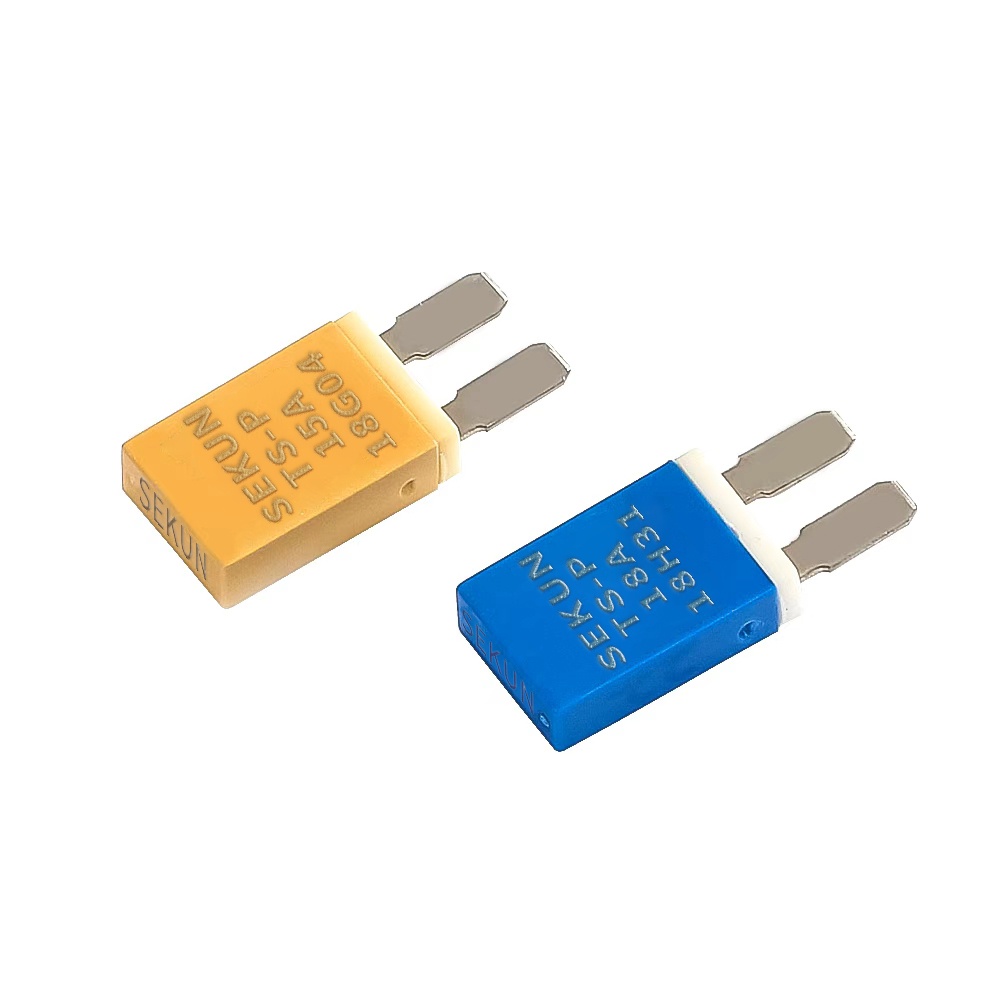

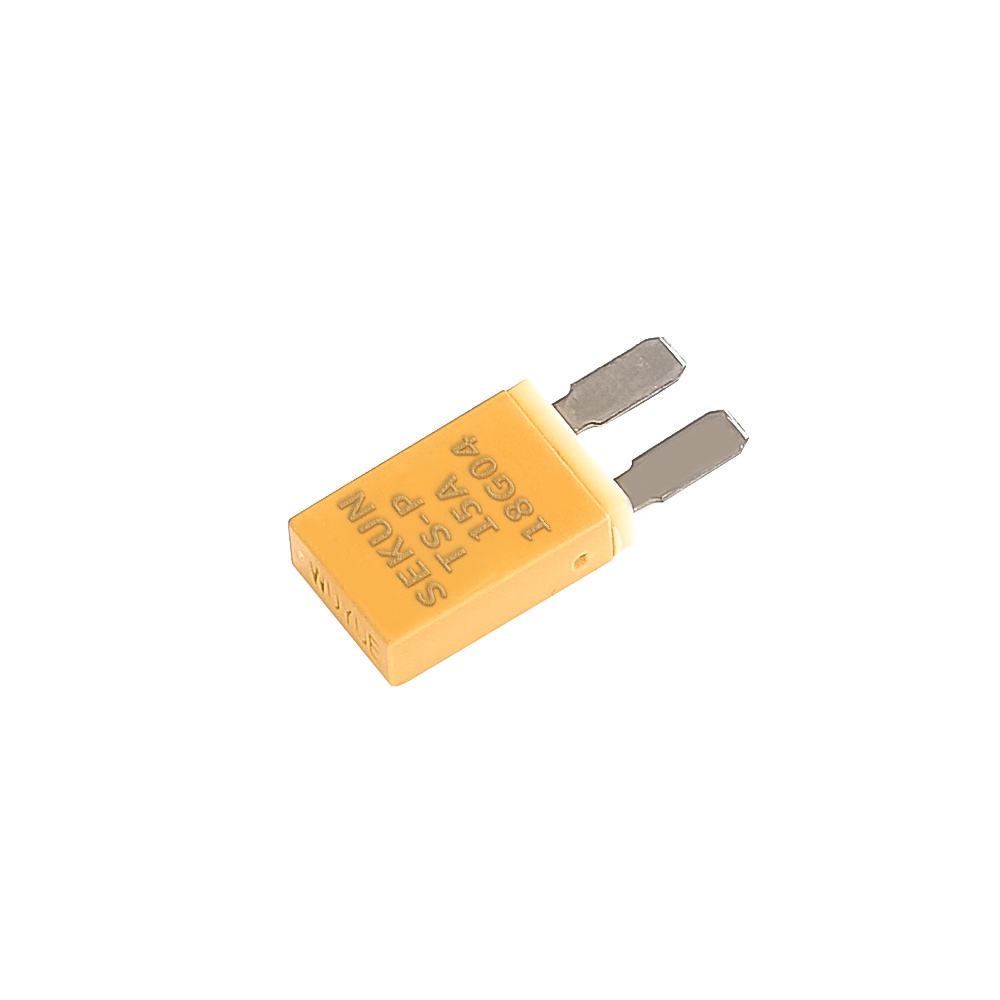

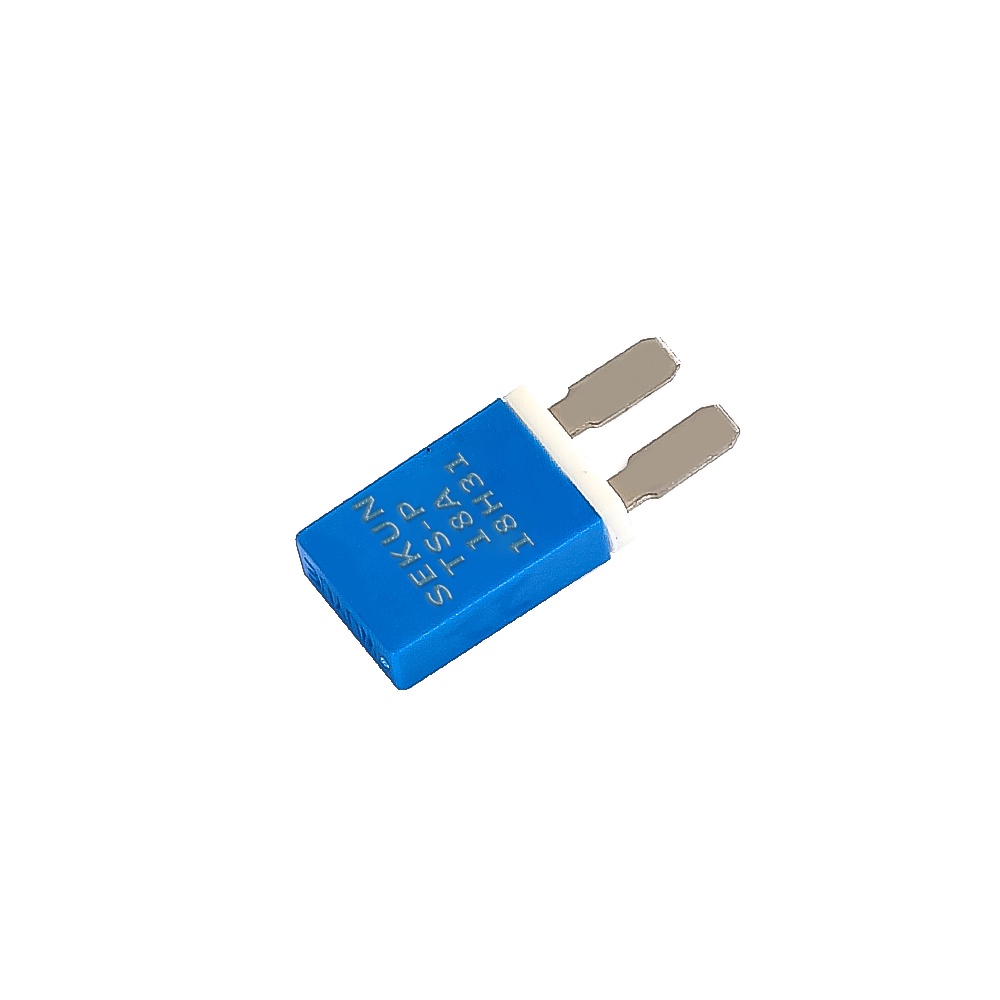

TS-P Car Window Motor Protector
TS-P Car Window Motor Protector
Focused on R&D and Manufacturing
Full range of product certifications
Serving global customers
Navigation
Related products
Send Us A Message
Product Features
Compact size, long service life, and high reliability;
Highly accurate tripping time to prevent motor overheating;
Features dual-performance actuation based on both current and temperature sensing;
Multiple terminal types available for flexible selection;
Operating Ambient Temperature: -20°C to 80°C.

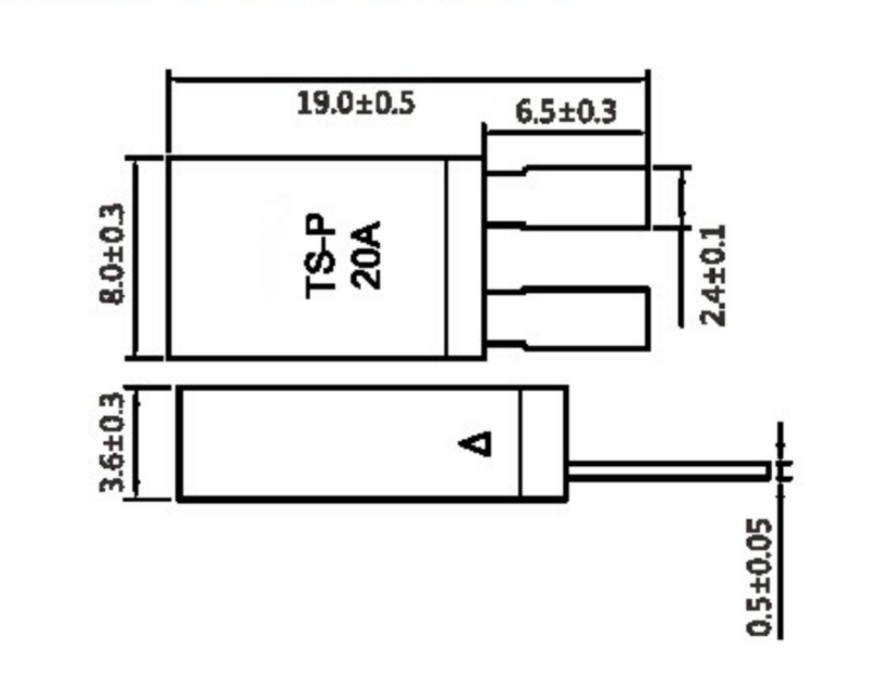

Dimensional Drawing
Electric Specifications
125V AC / 250V AC: 2~20A
12V DC / 24V DC: 3~35A
Designed Current Trip Value Range: 2~35A
R/T25℃ Current Detection Standard: 4–10 seconds or Customized
Applications
Power Window Motors, Wiper Motors, Seat Motors, Sunroof Motors
Soymilk Makers, Juice Extractors, Food Processors, Noodle Makers
Temperature Range and Tolerance
Design/Working Principles
The TS-P Series thermal protector operates by passing current through a resistive overheating protection element. As the current increases or the ambient temperature rises to the set trip point, the bimetallic element rapidly actuates, opening the contacts to cut off the circuit. When the device cools down to a safe operating temperature, the contacts automatically close, restoring power.
