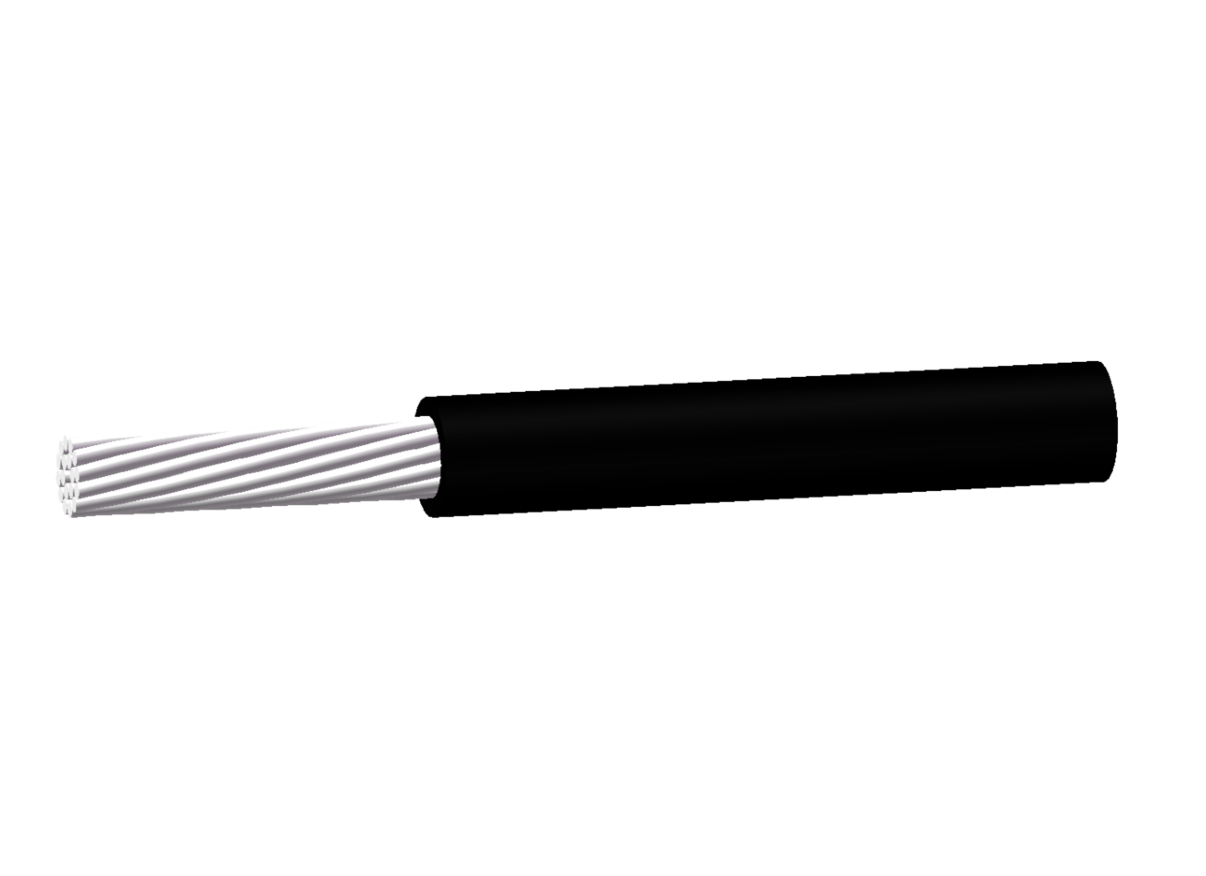

Product Structure

* Multi-strand bare copper or tinned copper stranded flexible conductor

Performance of bare copper wire per standard GB/T 3953-2009; performance of tinned copper wire per standard GB/T 4910-2009; conductor structure per GB/T 3956-2008 or customer requirements

* Silicone rubber insulation

Insulation material performance per GB/T 2951-2008; finished wire and cable outer diameter per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

Technical Data

* Temperature Range: -60 ~ +180℃

* Rated Voltage: U₀/U 3000V; 6000V; 10000V

* Test Voltage: According to rated voltage

* Insulation Resistance: ≥ 100 MΩ/km

* Radiation Resistance: up to 20 × 10⁶ cJ/kg (up to 20 Mrad)

Product Features

* Excellent environmental friendliness, odorless and non-toxic, excellent antithrombogenicity and biological inertness; excellent electrical insulation properties; high temperature resistance, with a long-term operating temperature of 180℃ and short-term temperature resistance up to 220℃; low temperature resistance with a minimum operating temperature of -60℃; oil and chemical reagent resistance, silicone rubber has moderate oil and solvent resistance; high-temperature silicone rubber cables maintain stable electrical performance in high-temperature environments, with good aging resistance and long service life. Suitable for use in long-term humid environments, with superior electrical performance, waterproof and mold-proof properties; silicone rubber is very soft, with good elasticity and excellent bending performance, making it easy to install.

* Optional - Corrosiveness of combustion gases (halogen-free) compliant with DIN VDE 0482 Part 267, DIN EN 50267-2-2, IEC 60754-2 (equivalent to DIN VDE 0472 Part 813); behavior in fire with no flame propagation compliant with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent to DIN VDE 0472 Part 804 Test Method B)

* Free from hazardous substances, compliant with RoHS standards

Application Scope

* Used in the steel production industry, aviation industry, as well as shipbuilding, cement, glass, and ceramic factories. Due to its halogen-free single-core design, it is particularly suitable for power stations.

* Widely used in lighting fixtures, household appliances, electric heating appliances, instruments and meters, motor lead wires, and high-temperature wire environments in electronics, lighting, dyeing equipment, etc.
