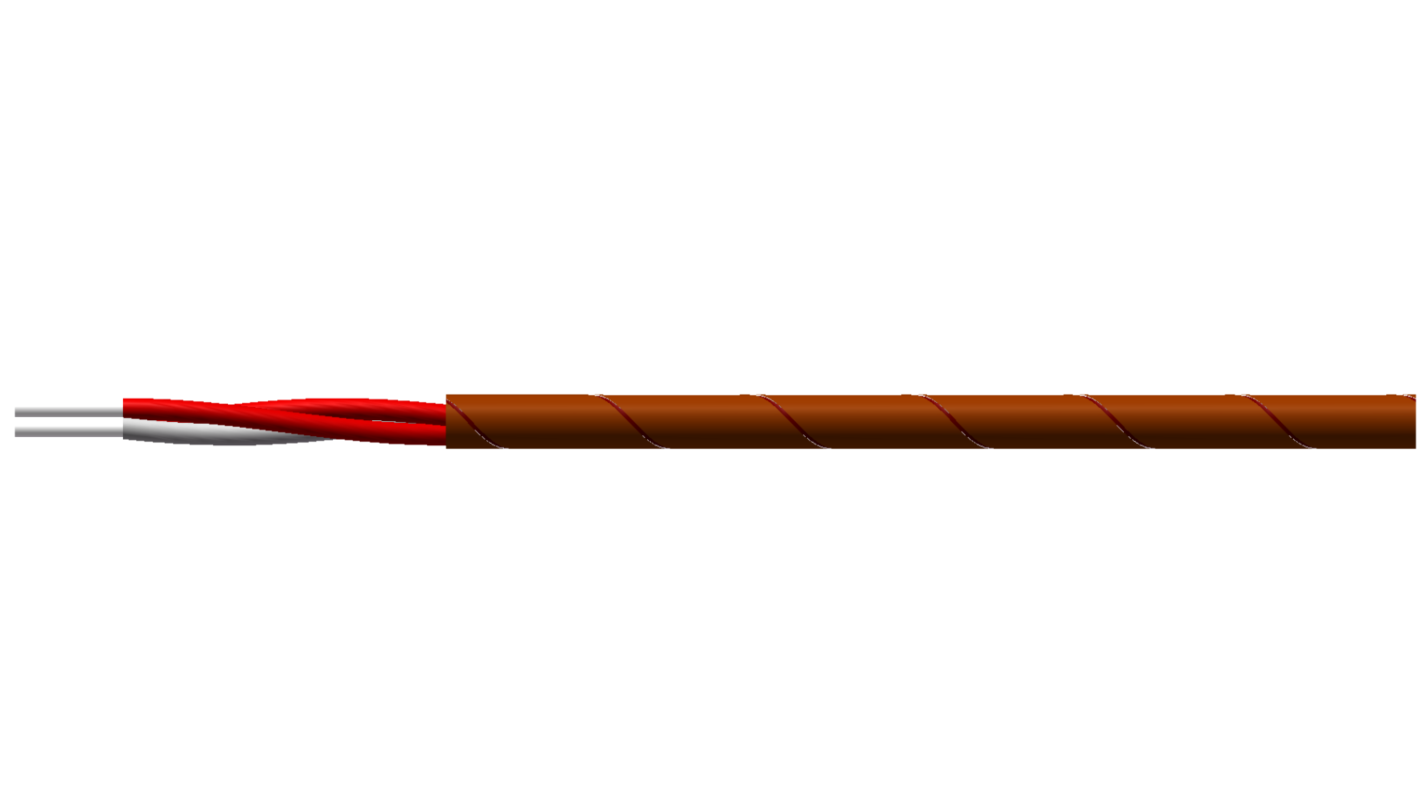

Product Structure

* Pure nickel or nickel-plated copper stranded conductor

Performance of nickel-plated copper wire per standard GB/T 11089-1989; performance of pure nickel wire per standard GB/T 3120-1996; conductor structure per GB/T 3956-2008 or customer requirements

* PTFE tape wrapped insulation

* Polyimide tape wrapped sheath

Technical Data

* Temperature Range: 300℃, with short-term temperature resistance up to 350℃

* Rated Voltage: U₀/U 600V

* Insulation Volume Resistivity: 10¹⁷ Ω·cm

* Radiation Resistance: Withstands irradiation dose of 5 × 10⁷ Gy

Product Features

* Good thermal-oxidative aging resistance; strong mechanical properties and wear resistance; excellent electrical insulation properties with good resistance to corona and partial discharge; minimal change in electrical insulation performance at high temperatures; high radiation resistance. Under strong radiation exposure, tensile strength and elongation show no significant change, which is an advantage over fluorinated materials; resistant to organic solvents, ozone, fungi, and corrosion; non-hygroscopic, non-flammable, and self-extinguishing in fire.

* Free from hazardous substances, compliant with RoHS standards

Application Scope

* Hot runner systems, heating molds, instrumentation, metallurgy, thermal engineering, petroleum, chemical industry, natural gas, chemicals, and other special environments.
