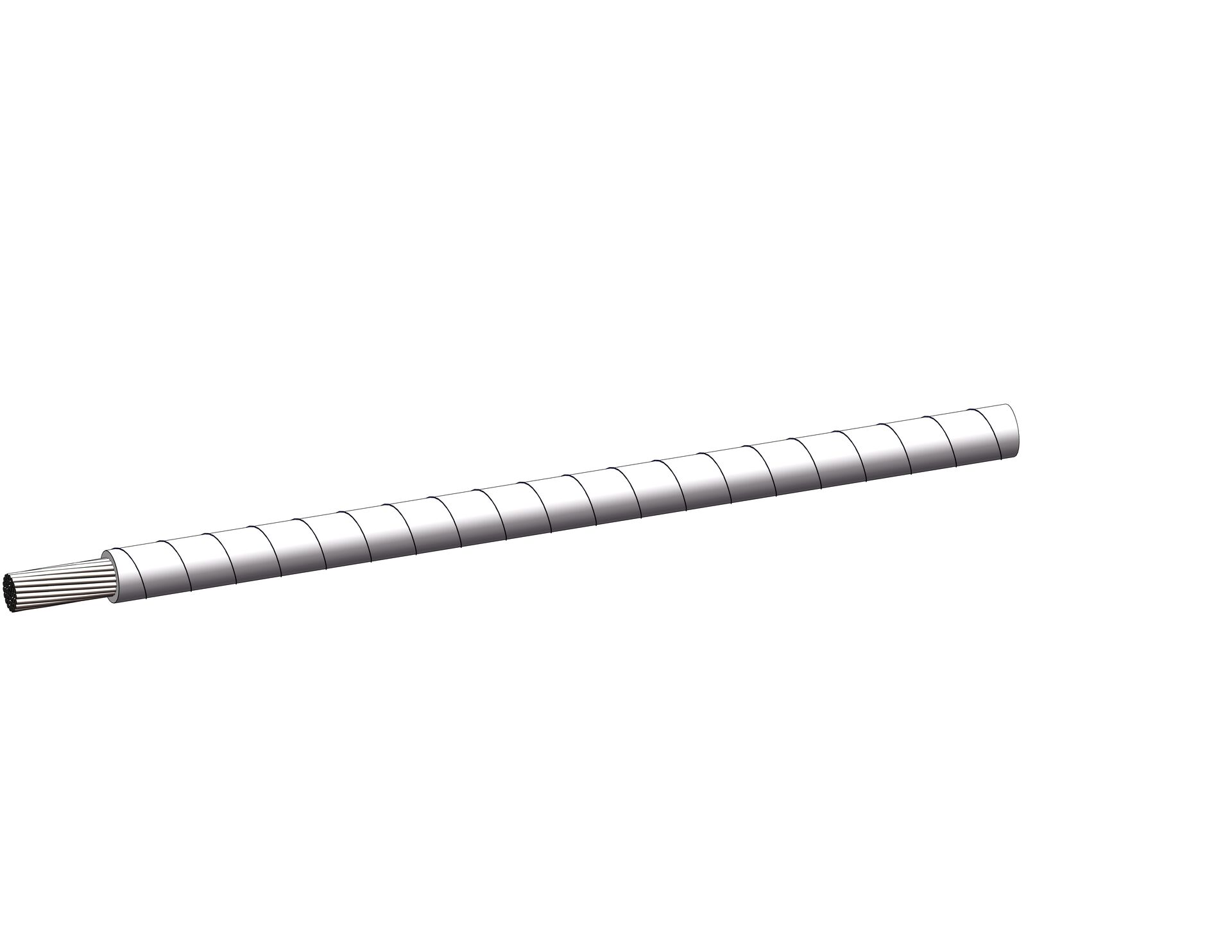

Product Structure

* Bare copper, silver-plated, or nickel-plated copper wire stranded conductor

Performance of bare copper wire per standard GB/T 3953-2009; performance of silver-plated copper wire per standard JB/T 3135-2011; performance of nickel-plated copper wire per standard GB/T 11089-1989; conductor structure per GB/T 3956-2008 or customer requirements

* PTFE (Polytetrafluoroethylene) tape insulation

Technical Data

* Temperature Range: -60 ~ +200/250℃

* Rated Voltage: U₀/U 250V, 300V, 600V

* Test Voltage: 1500V, 2000V

* Insulation Volume Resistivity: 10¹⁸ Ω·cm

Product Features

* Good flexibility and bending resistance; insulation adopts a wrapping/taping method with no risk of cracking, ensuring safer use and longer service life; excellent aging resistance and chemical resistance, unaffected by strong corrosive chemical reagents; excellent flame retardancy, meeting UL1581 VW-1 and IEC 60332 flame retardant standards; after taping, the insulation undergoes high-temperature sintering to bond the overlapping layers together, providing waterproof and moisture-proof capabilities for safer use. Verified by immersion voltage test with no breakdown.

* Free from hazardous substances, compliant with RoHS standards

Application Scope

* Motor industry, aerospace, lighting equipment, household appliances, automotive industry, temperature measurement and control, instrumentation
