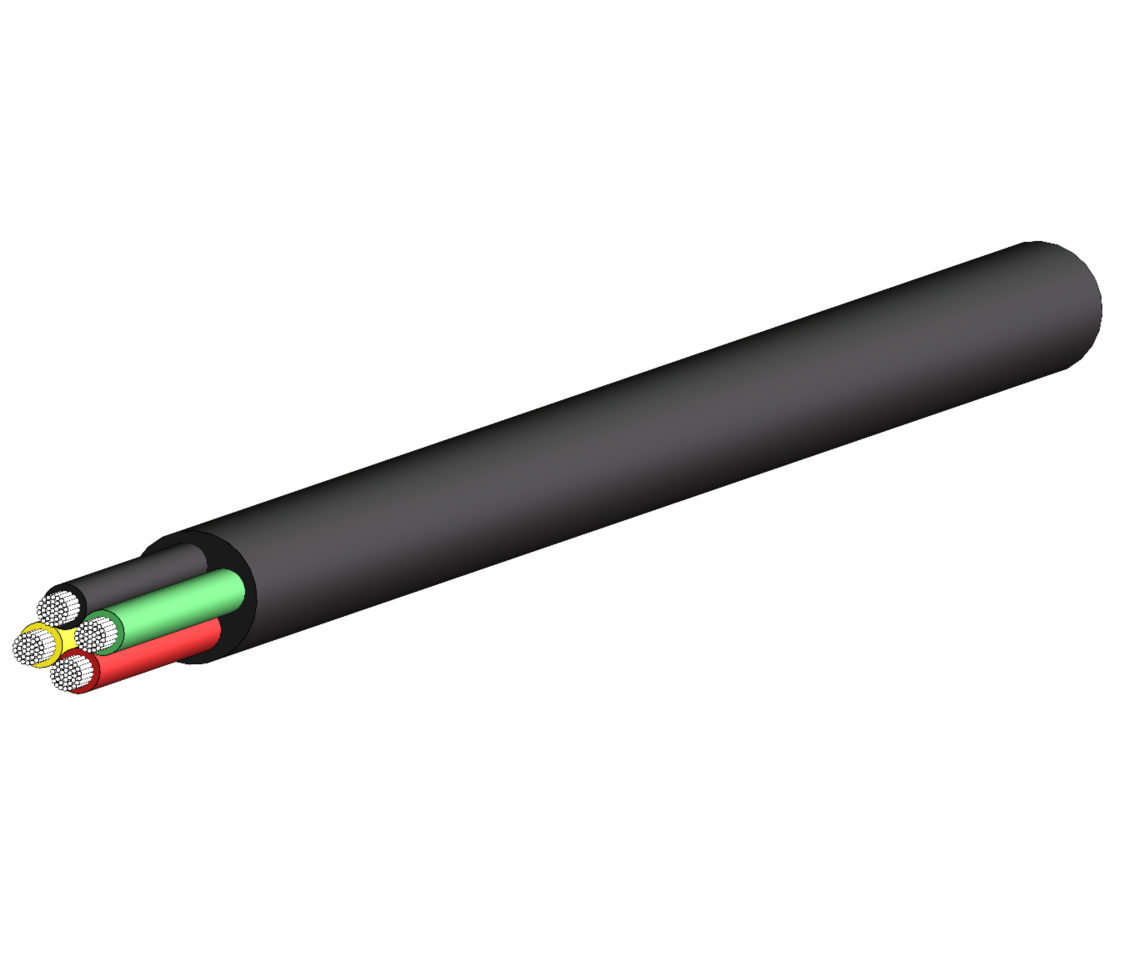

Product Structure

* Multi-strand tinned copper stranded flexible conductor

Performance of tinned copper wire per standard GB/T 4910-2009; conductor structure per GB/T 3956-2008 or customer requirements

* Silicone rubber insulation

Insulation material performance per GB/T 2951-2008; finished wire and cable outer diameter per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

* Silicone rubber sheath

Sheath material performance per GB/T 2951-2008; finished wire and cable outer diameter per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

Technical Data

* Temperature Range: -60 ~ +200℃

* Rated Voltage: U₀/U 300V/500V

* Test Voltage: 1500V

* Insulation Resistance: ≥ 100 MΩ/km

* Radiation Resistance: up to 20 × 10⁶ cJ/kg (up to 20 Mrad)

Product Features

* Excellent environmental friendliness, odorless and non-toxic, excellent antithrombogenicity and biological inertness; excellent electrical insulation properties; high temperature resistance, with a long-term operating temperature of 180℃ and short-term temperature resistance up to 220℃; low temperature resistance with a minimum operating temperature of -60℃; oil and chemical reagent resistance, silicone rubber has moderate oil and solvent resistance; high-temperature silicone rubber cables maintain stable electrical performance in high-temperature environments, with good aging resistance and long service life. Suitable for use in long-term humid environments, with superior electrical performance, waterproof and mold-proof properties; silicone rubber is very soft, with good elasticity and excellent bending performance, making it easy to install.

* Optional - Corrosiveness of combustion gases (halogen-free) compliant with DIN VDE 0482 Part 267, DIN EN 50267-2-2, IEC 60754-2 (equivalent to DIN VDE 0472 Part 813); behavior in fire with no flame propagation compliant with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent to DIN VDE 0472 Part 804 Test Method B)

* Free from hazardous substances, compliant with RoHS standards

Application Scope

* Used in the steel production industry, aviation industry, as well as shipbuilding, cement, glass, and ceramic factories. Due to its halogen-free single-core design, it is particularly suitable for power stations.

* Widely used in lighting fixtures, household appliances, electric heating appliances, instruments and meters, motor lead wires, and high-temperature wire environments in electronics, lighting, dyeing equipment, etc.

* Silicone rubber cables were developed for use in applications where the insulation material is subjected to extreme temperature variations. Good environmental resistance means silicone rubber cables can be used at temperatures as low as -60°C. Due to the elastic characteristics of the core insulation, they are used as flexible connection cables.
