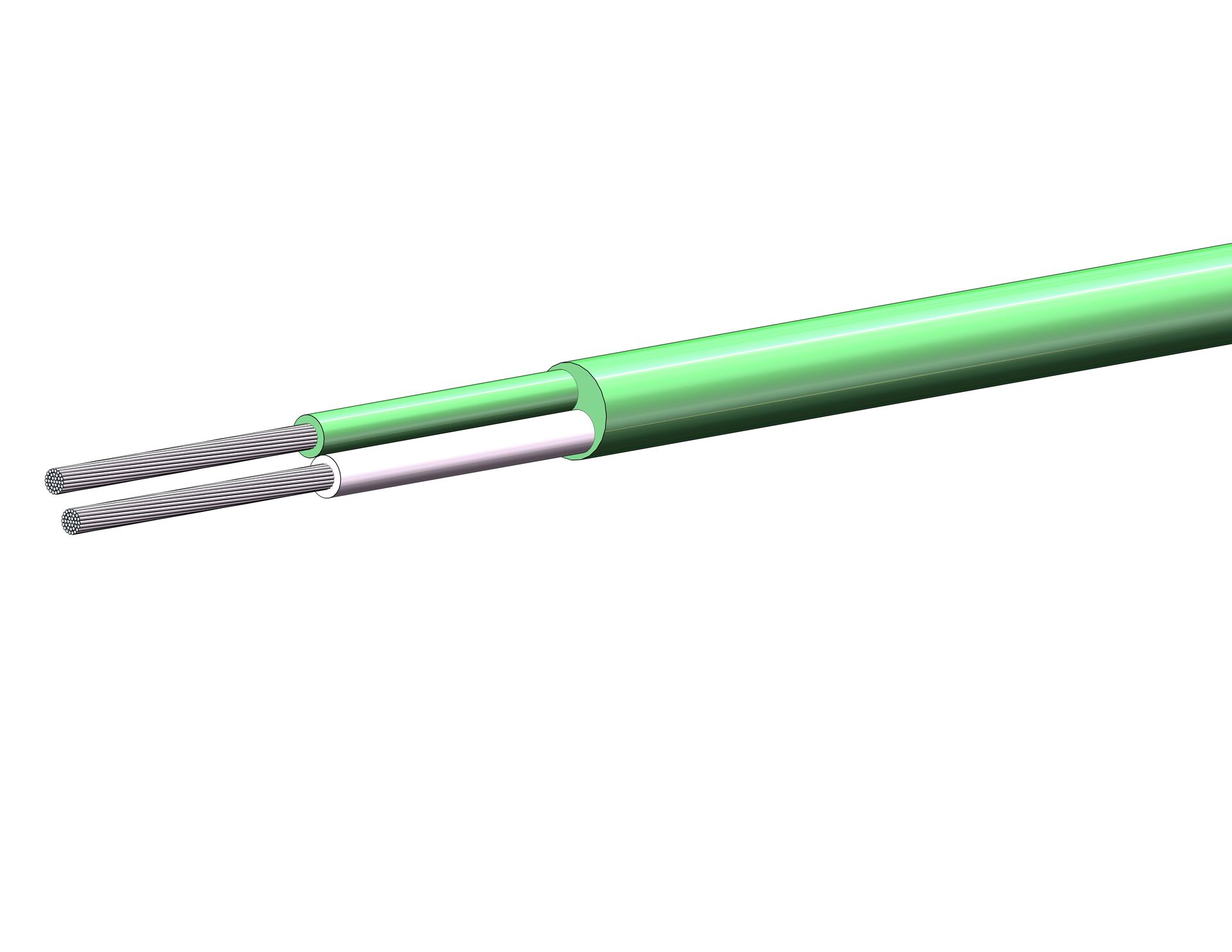

Product Structure

Multi-strand tinned copper or silver-plated copper stranded flexible conductor

Performance of tinned copper wire per standard GB/T 4910-2009; performance of silver-plated copper wire per standard JB/T 3135-2011; conductor structure per GB/T 3956-2008 or customer requirements

FEP (Fluorinated Ethylene Propylene) insulation; PFA (Perfluoroalkoxy) insulation

Insulation material performance per GJB 773A-2000; finished wire and cable dimensions per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

FEP sheath; PFA sheath

Insulation material performance per GJB 773A-2000; finished wire and cable dimensions per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

Technical Data

Temperature Range: -65 ~ +200℃; +250℃

Rated Voltage: U₀/U 300/500V

Test Voltage: 1500V

Insulation Resistance: ≥ 1.0 × 10³ MΩ·km at 20℃

Radiation Resistance: up to 1 × 10⁶ cJ/kg (up to 1 Mrad)

Product Features

Excellent corrosion resistance; resistant to oil, strong acids, strong alkalis, strong oxidizing agents, microorganisms; inhibits any fungal growth

Excellent electrical insulation properties; low and nearly frequency-independent dielectric characteristics; high voltage resistance; low high-frequency loss; non-hygroscopic; water absorption rate < 0.01%

Minimal water vapor permeability (approx. 0.18 mgr/cm² within 24 hours); high insulation resistance

Non-flammable, self-extinguishing; flame retardant test compliant with DIN VDE 0482 Part 265-2-1 / EN 50265-2-1 / IEC 60332-1

Free from hazardous substances, compliant with RoHS standards

Application Scope

In the electronics industry: used for temperature compensation wires, low-temperature resistant wires, high-temperature heating wires, aging-resistant wires, and flame-retardant wires

In the household appliance industry: used for internal wiring of air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electric kettles, electric heaters, electric ovens, electric casseroles, lighting fixtures, etc.

These cables are mainly used in control cabinets subject to high thermal effects, as well as in brick factories, heaters, kitchen equipment, measuring equipment, and the chemical industry. These cables are non-flammable and resistant to acids, alkalis, solvents, oil, and gasoline.
