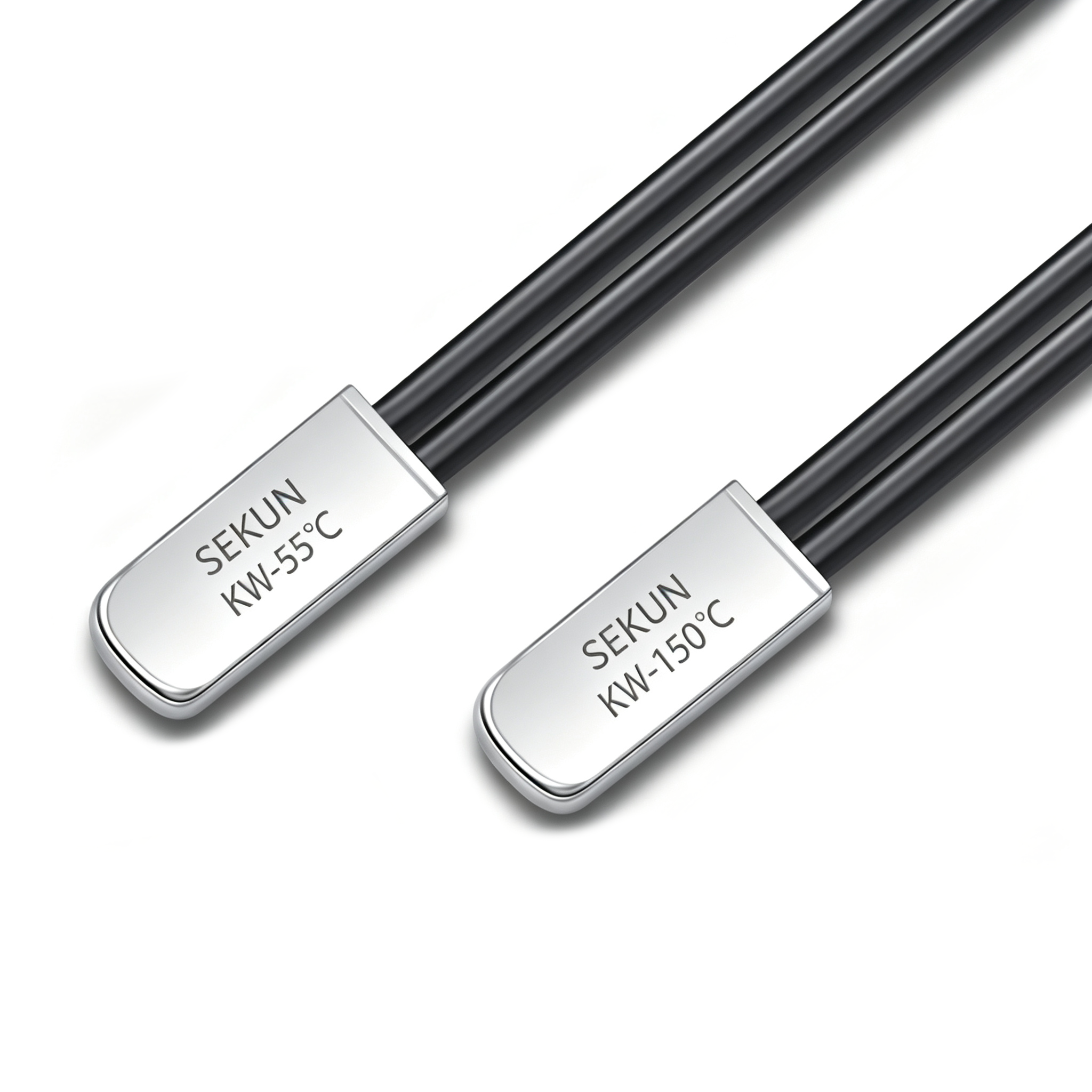

KW Thermal Protector
KW Thermal Protector
Focused on R&D and Manufacturing
Full range of product certifications
Serving global customers
Navigation
Related products
Send Us A Message
Product Features
Dual-function actuation based on both current and temperature sensing;
Rigid housing provides protection against paint impregnation and mechanical stress, safeguarding internal components;
Accurate trip temperature without contact chatter or creep;
All components strictly comply with the European RoHS environmental standard.

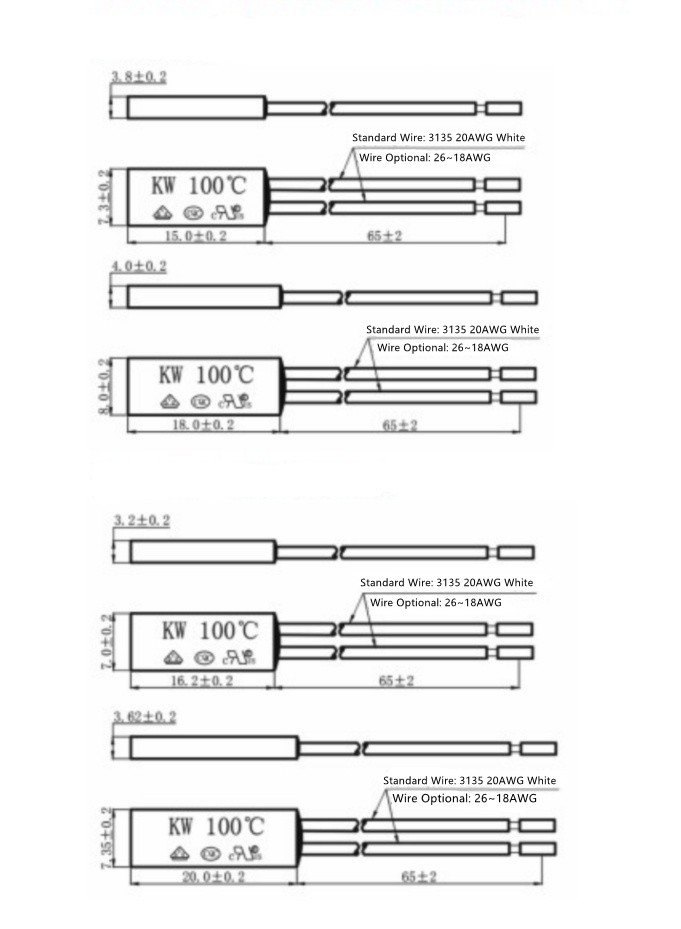

Dimensional Drawing
Electric Specifications
8A / 24V DC
6A / 250V AC
8A / 125V AC
Applications
Motors, General-purpose Motors
Battery Products
Electronic Rectifiers, Lighting Fixtures
Heating Pads, Electric Blankets
Laminating Machines, Power Tools, Chargers, Transformers
Small Household Appliances
Temperature Range and Tolerance
Design/Working Principles
• Dual-function actuation based on both current and temperature sensing;
• Rigid housing supports and protects internal components from paint impregnation and mechanical stress;
• Precise trip temperature without contact creep or chatter;
• All components strictly comply with the European RoHS environmental standard.
