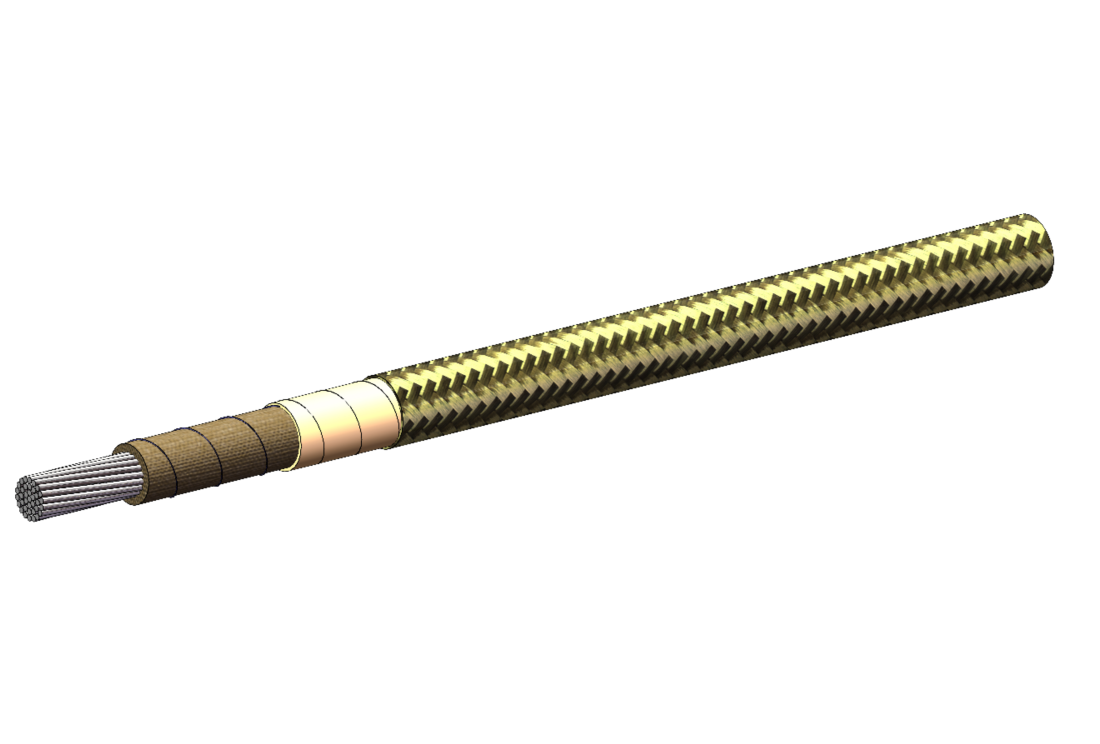

Product Structure

* Multi-strand pure nickel stranded conductor

Performance of pure nickel wire per standard GB/T 3120-1996; conductor structure per GB/T 3956-2008 or customer requirements

* Insulation: High-temperature fiber

Material performance per JC/T 1831-2008

* Wrap: Mica tape

Material performance per GB/T 6488.5-1999

* Sheath: High-temperature fiber

Material performance per JC/T 1831-2008

* Coating: PTFE aqueous dispersion sintering

Finished wire and cable outer dimensions per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

Technical Data

* Temperature Range: -65 ~ +1000℃

* Rated Voltage: U₀/U 300V/500V

* Test Voltage: 1500V

* Bending Radius: Fixed installation ≥ 20 × OD

Product Features

* Pure nickel stranded conductor with excellent high-temperature oxidation resistance. Multi-layer fiber or mica tape insulation wrapping; mica tape offers excellent high-temperature resistance, combustion resistance, and good insulation properties. The fiber is inorganic with non-flammability, good chemical resistance, low water absorption, high mechanical strength, good insulation, and strong heat resistance.

* Free from hazardous substances, compliant with RoHS standards

Application Scope

* Used in applications where extremely high connection temperatures and ambient temperatures may occur, such as in metallurgy, petroleum, chemical, natural gas, kerosene, and other special environments requiring fire-resistant electrical installations. Examples include steel plants, rolling mills, foundries, glass and ceramic factories, electromechanical equipment, drying tunnels, drying rooms, heating light sources, electric heating appliances, furnaces, and power plant construction, as well as thermoplastic molding processes. Disadvantages include low voltage resistance level and average fire resistance. The cable's special structural design is recommended for a maximum temperature of 220°C in humid environments and for use above this temperature in dry environments.
