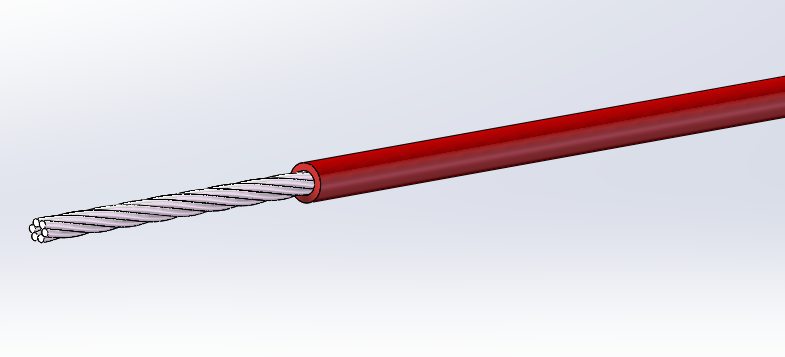

Product Structure

Single or multiple strands of tinned copper wire stranded flexible conductor

Performance of tinned copper wire per standard GB/T 4910-2009; conductor structure per GB/T 3956-2008 or customer requirements

FEP (Fluorinated Ethylene Propylene) insulation

Insulation material performance per GJB 773A-2000; finished wire and cable dimensions per GB/T 2951-2008; finished wire and cable electrical performance per GB/T 3048-2007

Technical Data

Temperature Range: -65 ~ +200℃

Rated Voltage: U₀/U 600V

Test Voltage: 2000V

Insulation Resistance: ≥ 1.0 × 10³ MΩ·km at 20℃

Radiation Resistance: up to 1 × 10⁶ cJ/kg (up to 1 Mrad)

Product Features

Excellent corrosion resistance; resistant to oil, strong acids, strong alkalis, strong oxidizing agents, microorganisms; inhibits any fungal growth

Excellent electrical insulation properties; low and nearly frequency-independent dielectric characteristics; high voltage resistance; low high-frequency loss; non-hygroscopic; water absorption rate < 0.01%

Minimal water vapor permeability (approx. 0.18 mgr/cm² within 24 hours); high insulation resistance

Non-flammable, self-extinguishing; flame retardant test compliant with DIN VDE 0482 Part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent to DIN VDE 0472 Part 804 Test Method B)

Free from hazardous substances, compliant with RoHS standards

Application Scope

In the electronics industry: used for temperature compensation wires, low-temperature resistant wires, high-temperature heating wires, aging-resistant wires, and flame-retardant wires

In the household appliance industry: used for internal wiring of air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electric kettles, electric heaters, electric ovens, electric casseroles, lighting fixtures, etc.

Used in control cabinets subject to high heat, as well as in brick factories, heaters, kitchen equipment, measuring equipment, and the chemical industry

Transmission wires for electronic equipment used under high temperature and high frequency; internal connecting wires for electronic computers; aerospace wires; and other special-purpose installation wires, oil well logging cables, submersible motor winding wires, micro-motor lead-out wires, etc.
