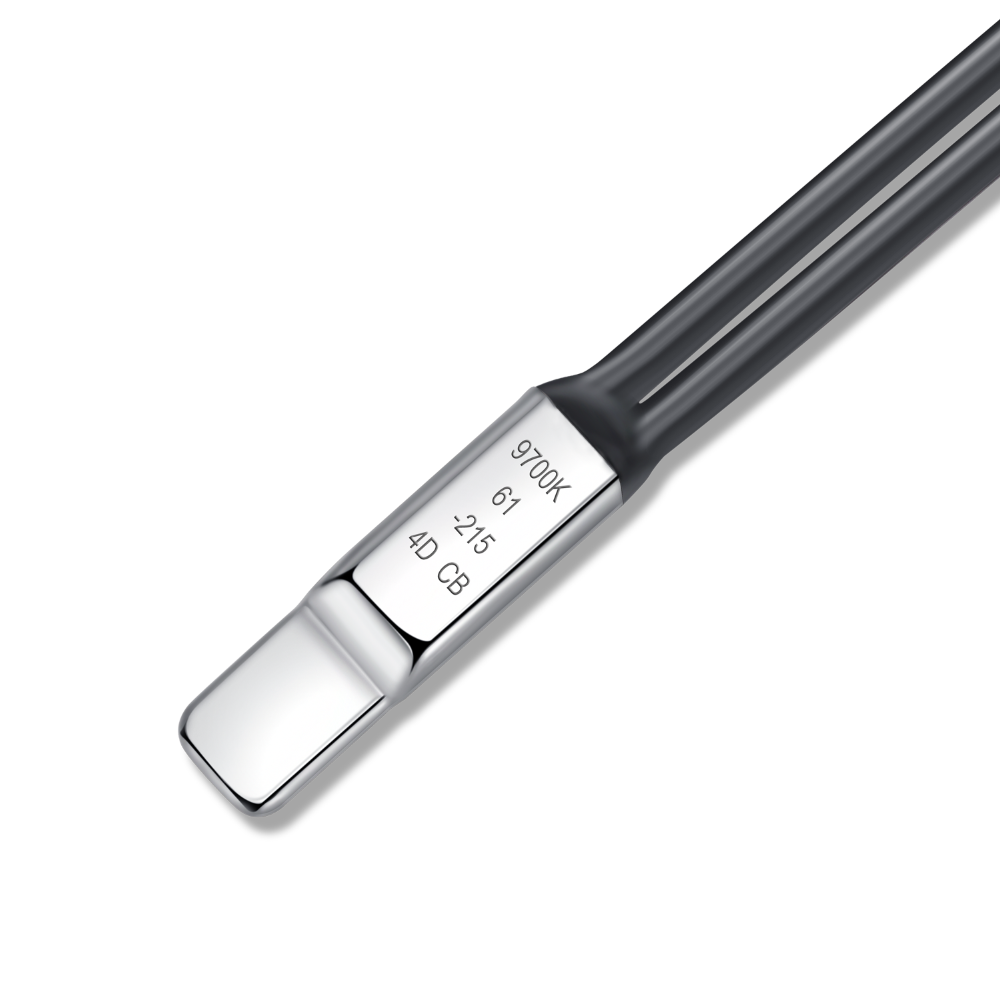

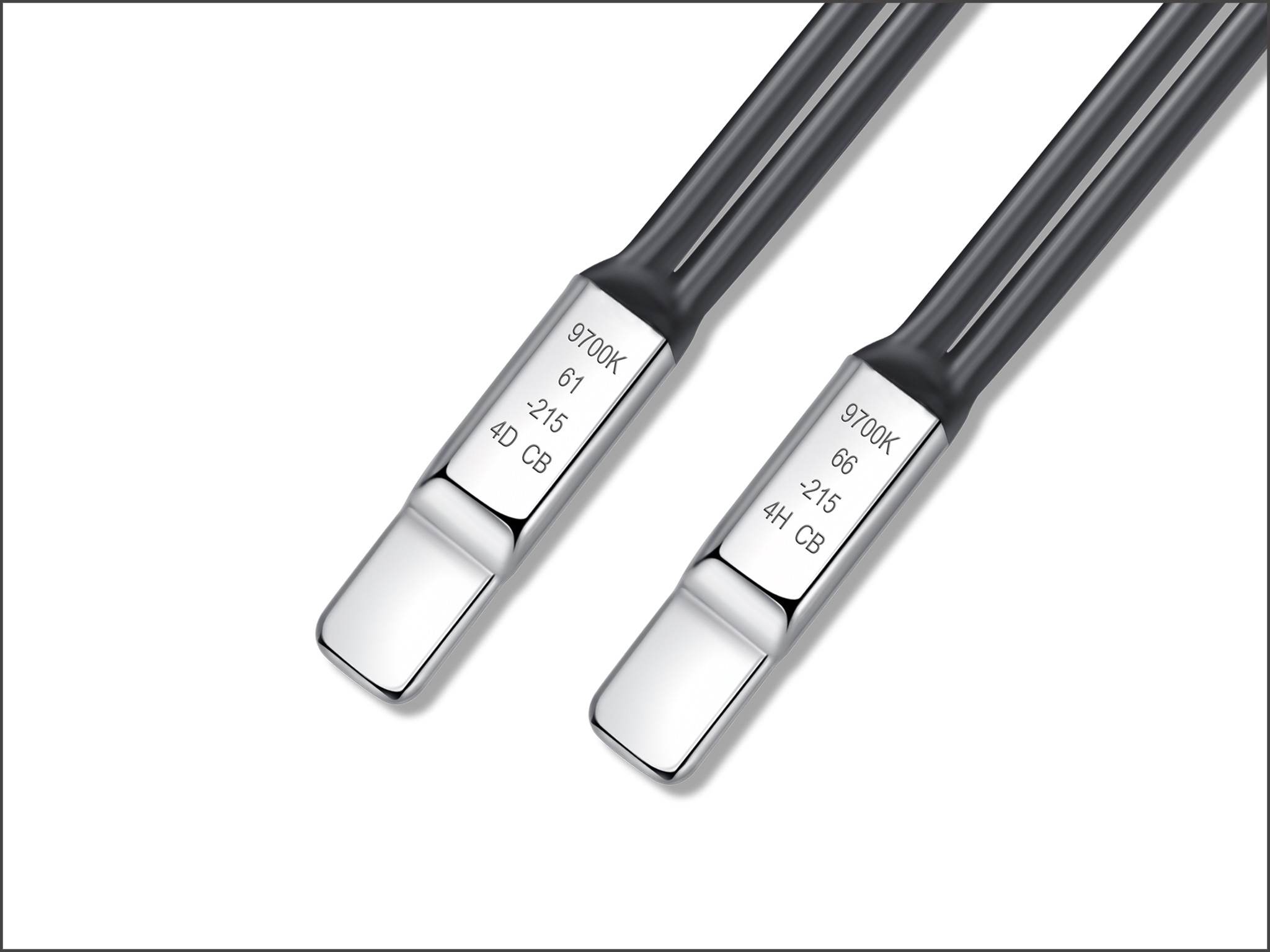

Product Features
Dual performance actuation based on both current and temperature sensing;
Sealed housing design ensures internal components are protected from paint or varnish ingress, suitable for various impregnation processes (e.g., vacuum impregnation);
Accurate trip temperature without contact chatter or creep;
Wire leads can be crimped to various specifications and lengths according to customer requirements;
All components strictly comply with RoHS environmental standards.

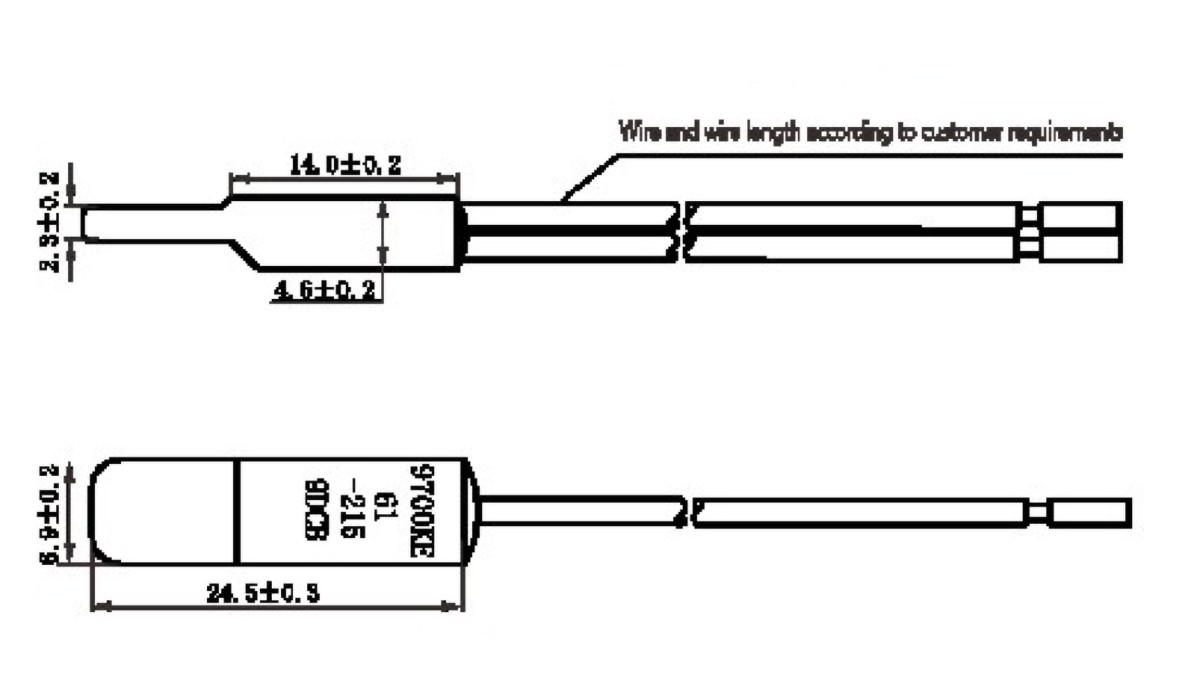

Dimensional Drawing
Electric Specifications
18A / 24V DC
13A / 250V AC
18A / 125V AC
Applications
Solar electric heating tubes, heaters
Motors
Temperature Range and Tolerance
Design/Working Principles
When current passes through the resistive bimetallic element of the 9700K thermal protector, an increase in current or a rise in the ambient temperature to the set point causes the bimetallic element to actuate rapidly, opening the contacts and cutting off the circuit. When the device cools down to a safe operating temperature, the contacts automatically close, restoring power.
The housing of the 9700K thermal protector is conductive and can be fitted with a temperature-sensing insulating sleeve.
