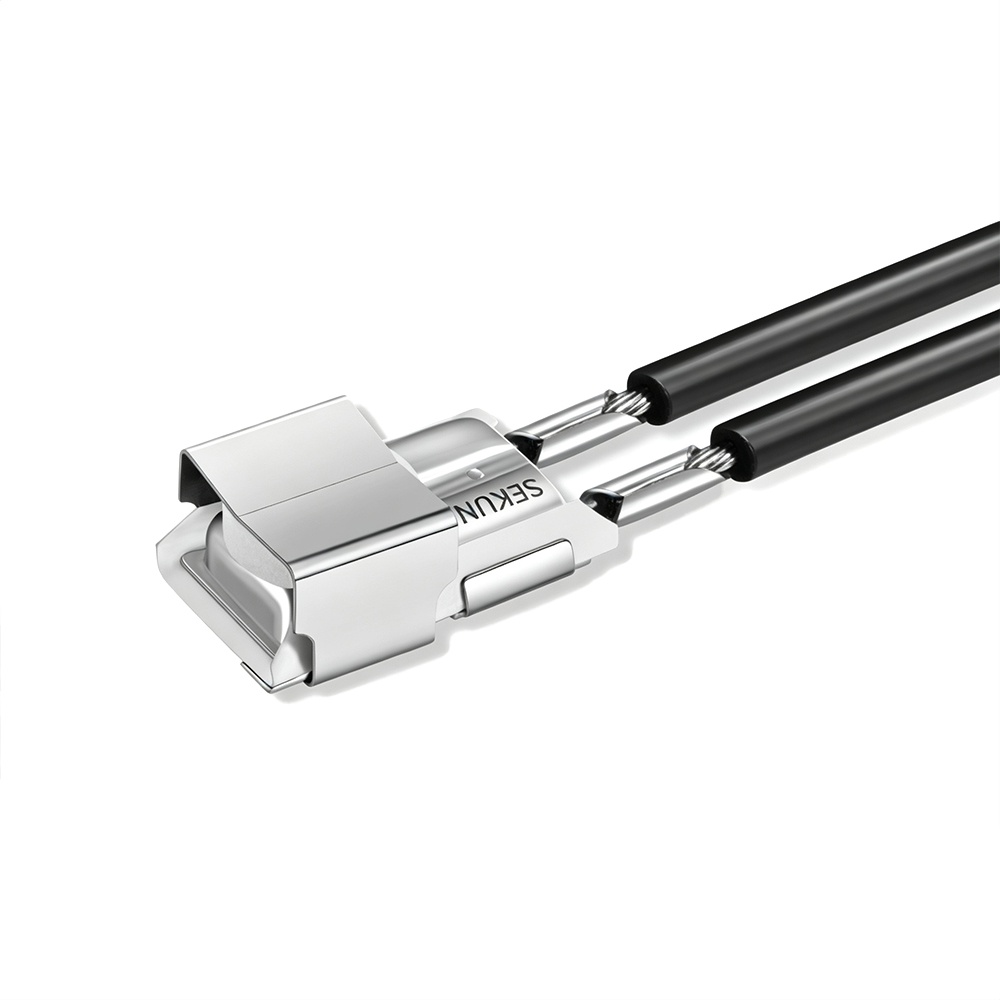

Product Features
Offers power-off protection and time-delay protection functions;
Provides a higher level of safety for equipment with rotating components;
Particularly suitable for abnormal protection of motors;
Sleeve-sealed construction prevents ingress of substances such as insulating varnish.

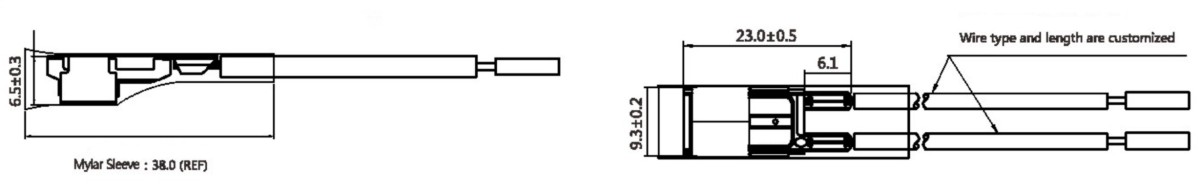

Dimensional Drawing
Electric Specifications
45A / 12V DC
20A / 24V DC
18A / 250V AC
28A / 125V AC
R/T25℃ Current Detection Standard: 4~10 seconds or customized
Applications
Power Window Motors, Wiper Motors, Seat Motors, Sunroof Motors
Soymilk Makers, Juice Extractors, Food Processors, Slimming Machines / Body Shapers
Washing Machines, Vacuum Cleaners, Garden/Lawn & Outdoor Equipment
Temperature Range and Tolerance
Design/Working Principles

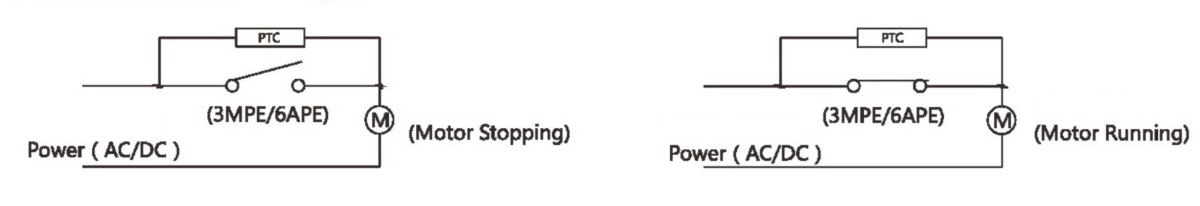

The 6APE thermal protector and the PTC element are connected in parallel, and this combined circuit is then connected in series with the load (motor). During normal motor operation, the PTC does not generate significant heat.
When an abnormal condition (overheating or overcurrent) occurs in the load, the 6APE thermal protector trips open. At this moment, the PTC element heats up, reaching a high temperature and a correspondingly high resistance. The sustained heat from the PTC keeps the 6APE protector in its tripped (open-circuit) state, causing the load to stop operating.
After the power supply is manually disconnected, the PTC begins to cool down. Once it has cooled sufficiently after a period of time, the 6APE protector resets automatically. When power is subsequently reapplied, the load resumes normal operation.
