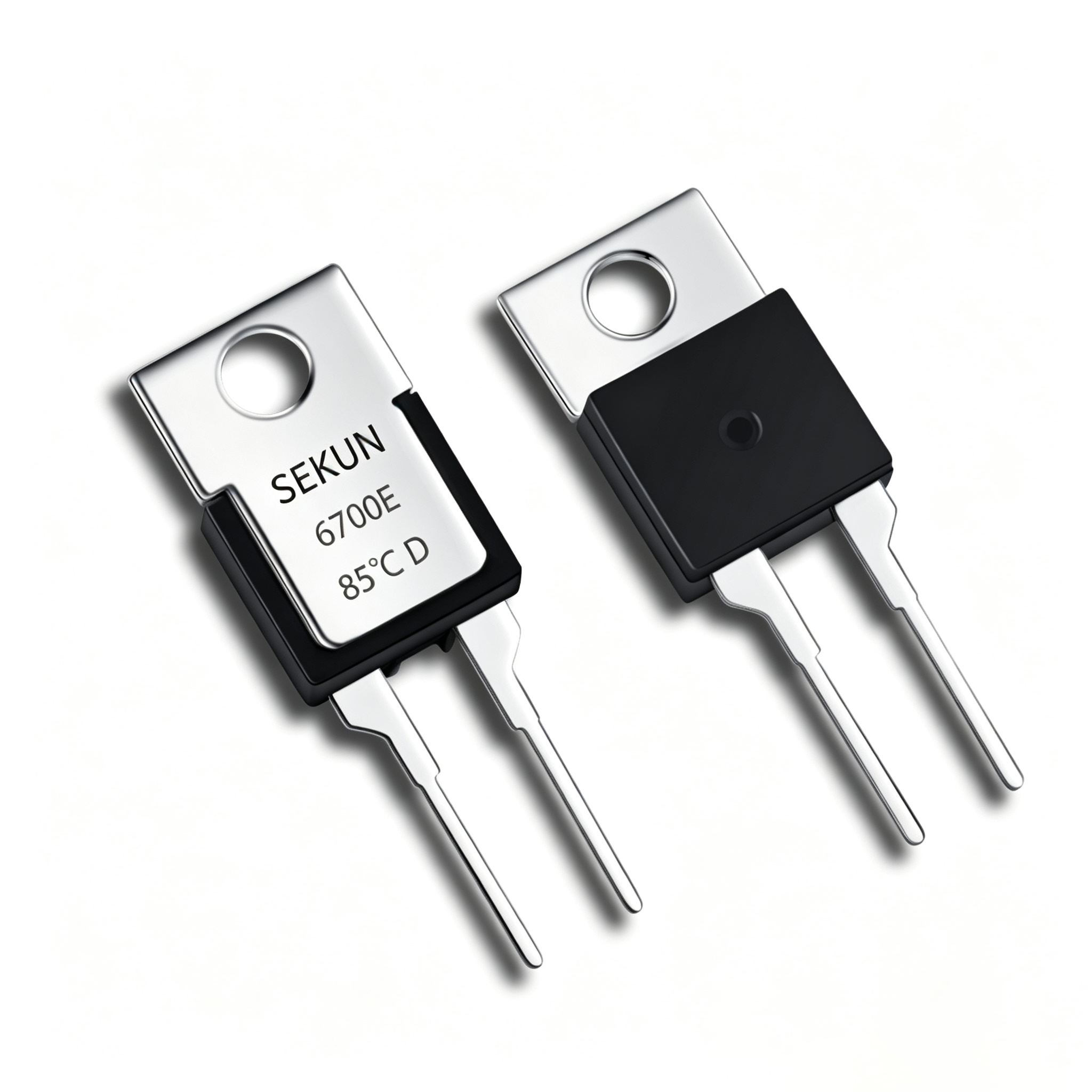

The 6700E circuit board protector is a contact-type, temperature-sensing, snap-action plastic-encapsulated thermostat with an insulated housing. It features stable performance, long service life, responsive and reliable operation without arcing, easy installation, and low radio interference. It is widely used in circuit boards, switching power supplies, chargers, ballasts, and other related fields.
Submit

Focused on R&D and Manufacturing

Full range of product certifications

Serving global customers

Related products

Send Us A Message

Submit

Product Features

Insulated housing, compact size, easy to install;

Sensitive operation, no arcing generated;

Better suited for installation and soldering on printed circuit boards in high-speed automated equipment, significantly saving labor

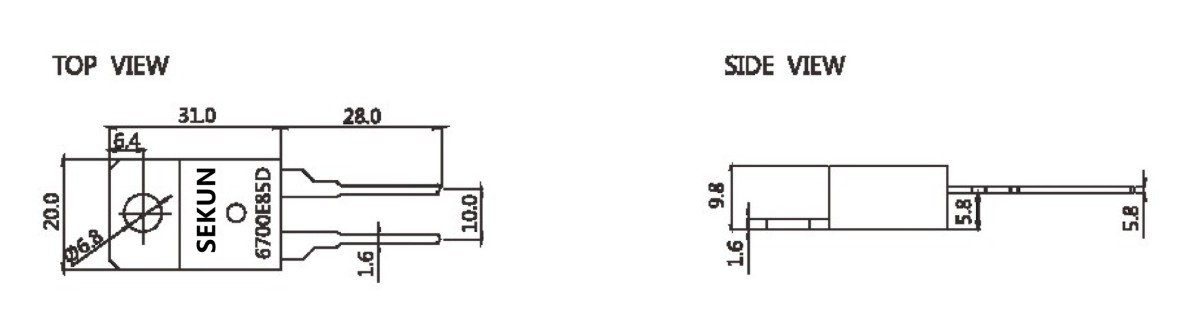

Dimensional Drawing

1787032946948218665688498176.jpg@!w400


Electric Specifications

2A / 30V DC

2A / 120V AC

1A / 250V AC


Applications

Printed Circuit Boards

Power Supply Systems

Computers and Computer Peripherals

Aircraft

Automation Equipment and Test Instrumentation


Temperature Range and Tolerance

Customer-Specified
30℃~150℃
Temperature Tolerance
±3℃, ±5℃
