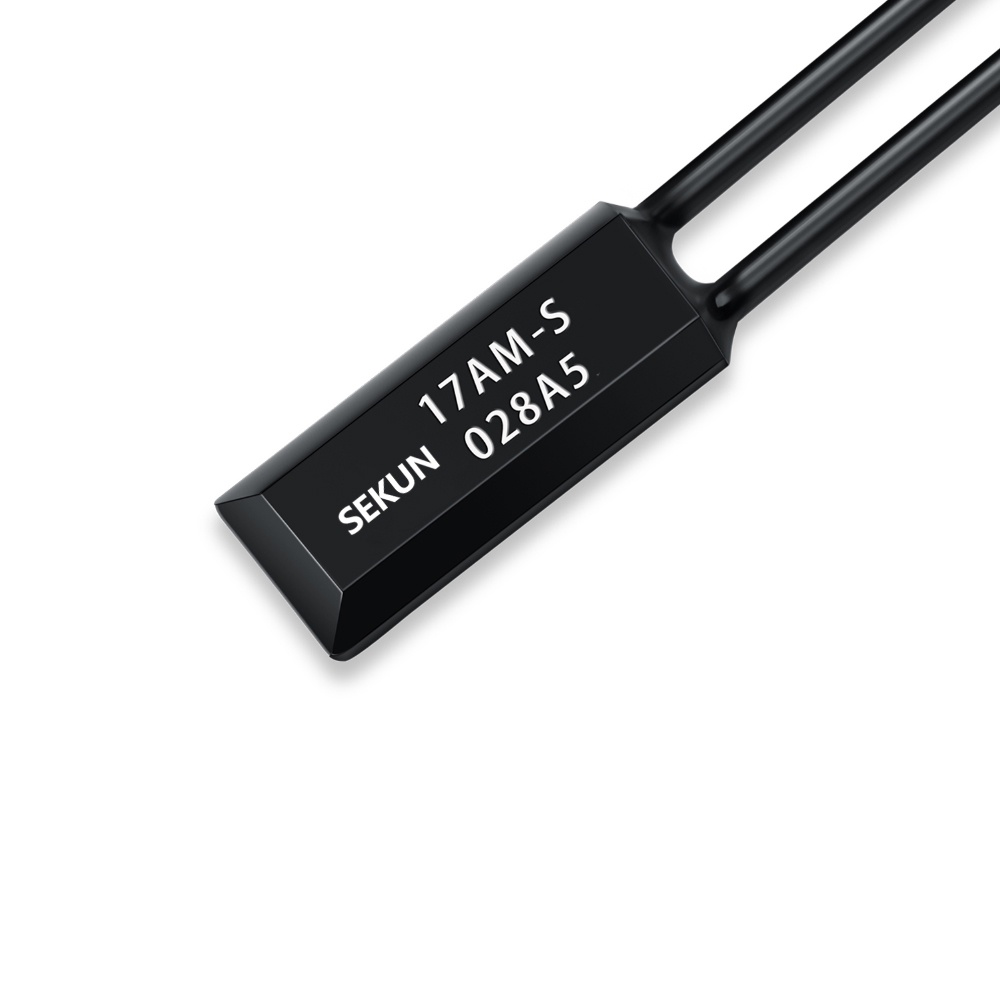

17AME-S Plastic Encapsulated Thermal Protector
17AME-S Plastic Encapsulated Thermal Protector
The 17AME-S Enhanced Series thermal protector is based on the standard 17AME model, enhanced with high-temperature-resistant engineering plastic and epoxy potting. This design provides an insulated housing, high sealing performance, and waterproof functionality, making it especially suitable for vacuum impregnated motors, waterproof heating pads, electric blankets, and similar products.
Focused on R&D and Manufacturing
Full range of product certifications
Serving global customers
Navigation
Related products
Send Us A Message
Product Features
Insulated housing for enhanced safety and reliability;
Waterproof functionality;
Capable of withstanding vacuum impregnation;
Suitable for fixed temperature, preset before factory shipment.

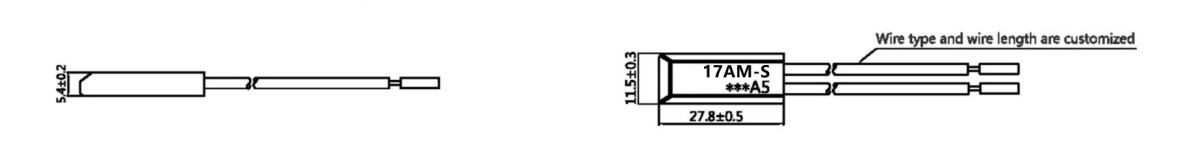

Dimensional Drawing
Electric Specifications
20A / 16V DC
10A / 250V AC
20A / 125V AC
Applications
Vacuum impregnated motors, waterproof heating pads, electric blankets
Temperature Range and Tolerance
