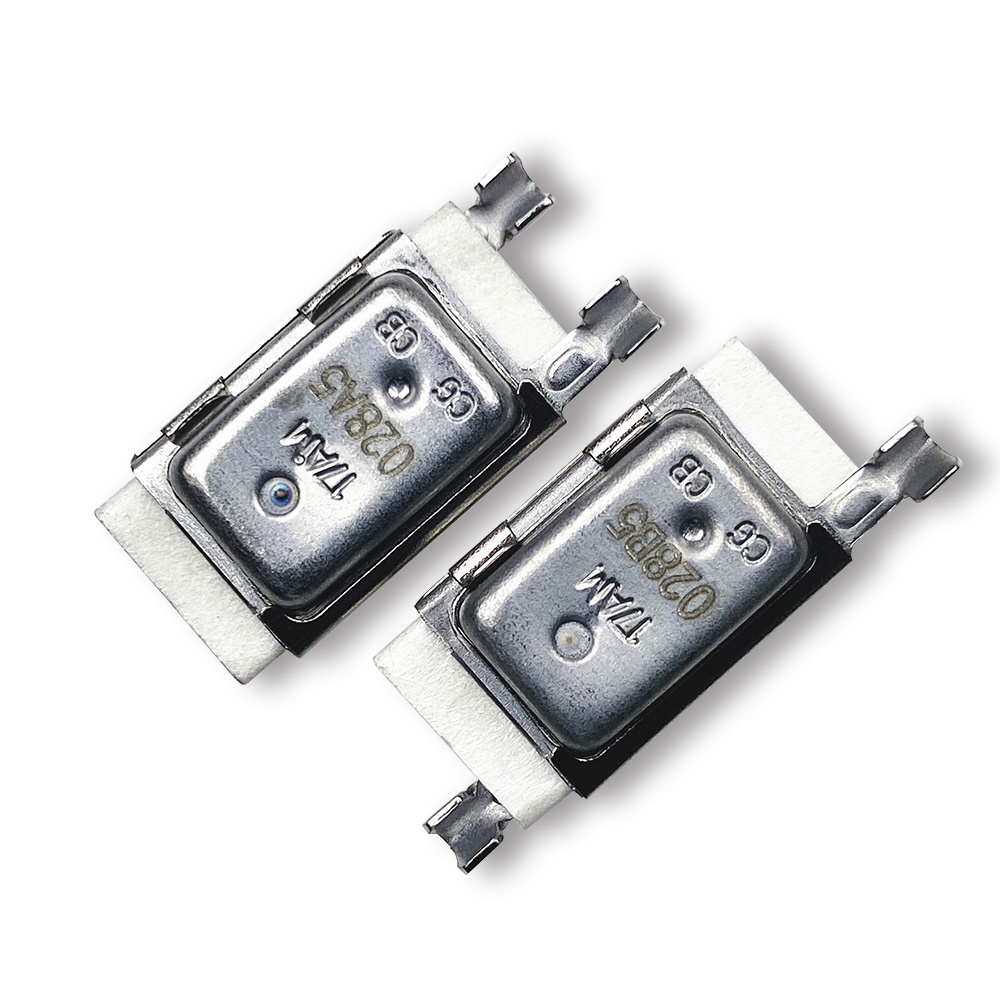

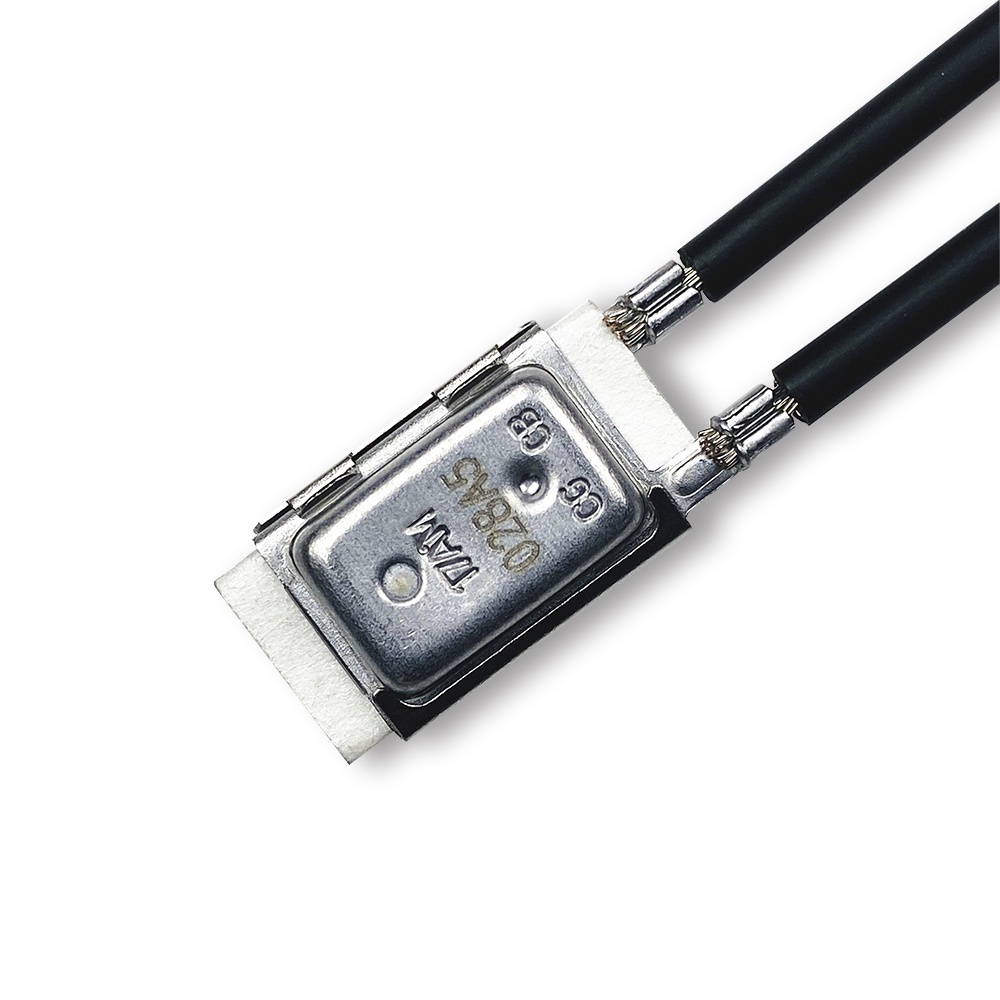

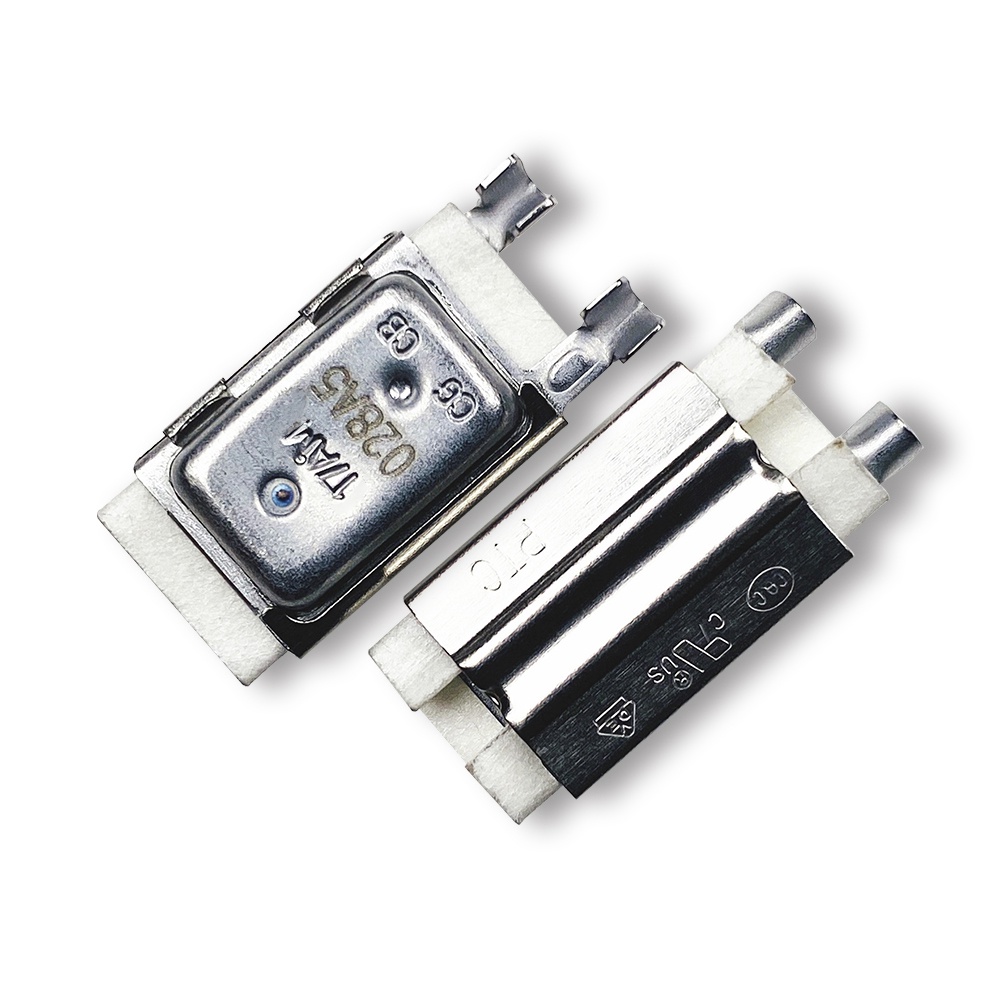

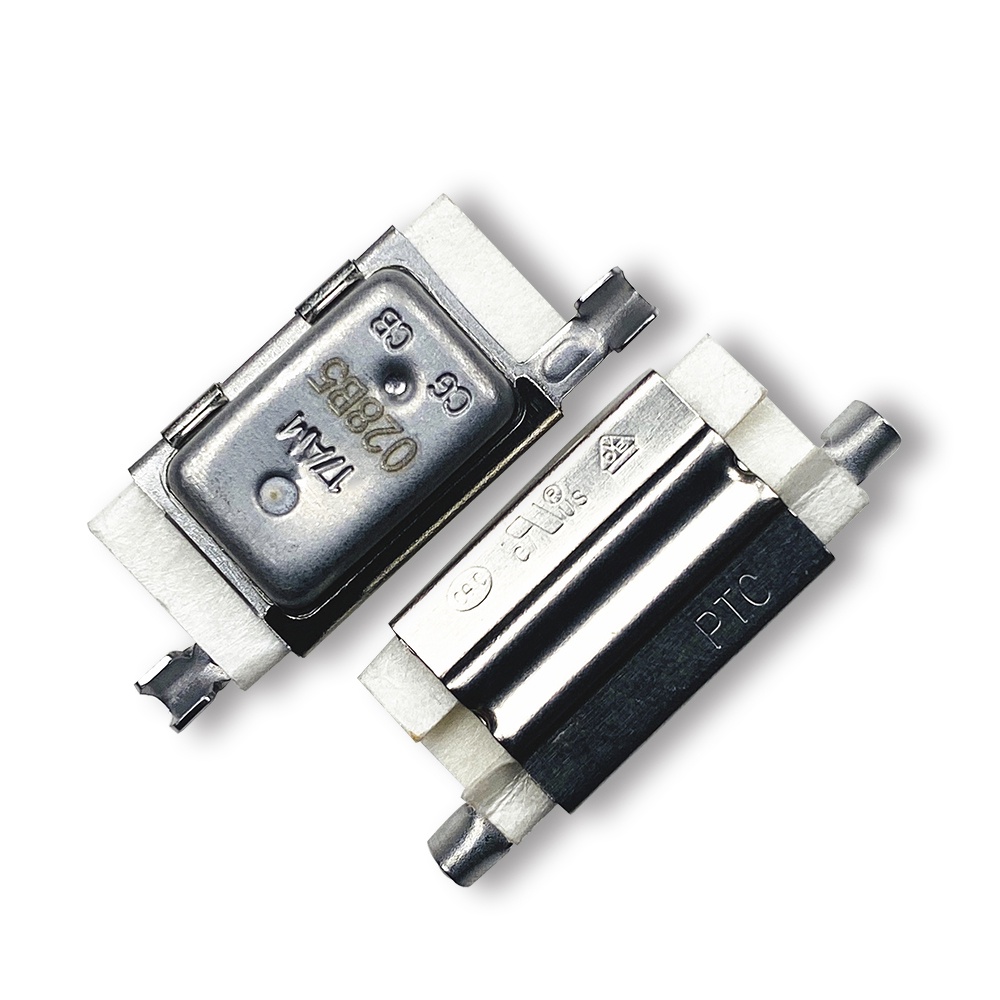

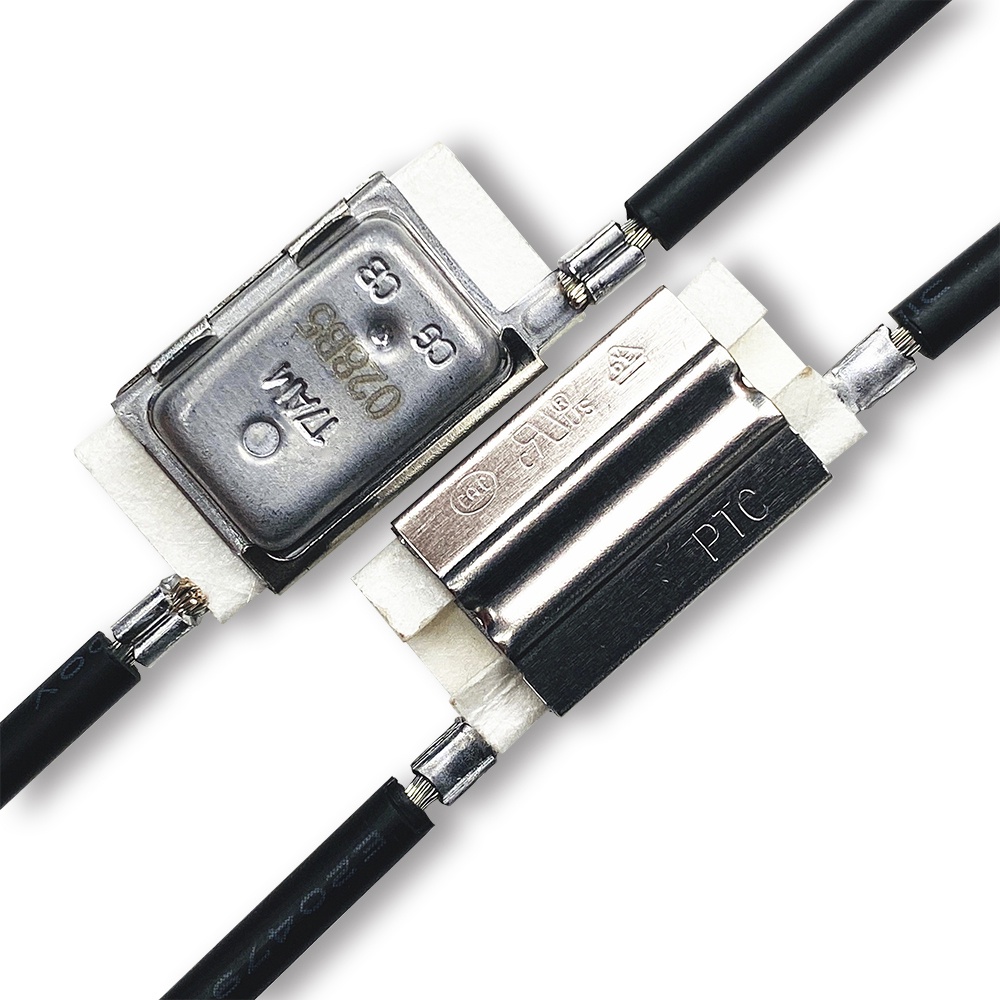

Product Features
Equipped with power-off protection and time-delay protection functions;
Higher reliability and safety;
More suitable for abnormal protection of motors;
Sleeve-sealed construction prevents the ingress of substances such as insulating varnish.

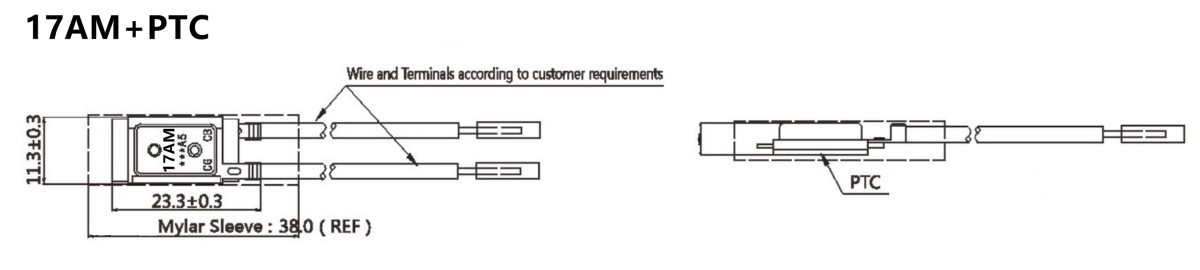

Dimensional Drawing
Electric Specifications
CG(Regular)
250V AC / 10A
125V AC / 20A
24V DC / 20A
DI(High Current)
250V AC / 15A
125V AC / 25A
24V DC / 25A
TD(Ultra-high Current)
250V AC / 20A
125V AC / 30A
24V DC / 30A
MP(Temperature&Current)
250V AC / 15A
125V AC / 25A
24V DC / 25A
Applications
Vacuum cleaners, shredders, mixers, lawn mowers
Power tools, snow blowers
Household appliances, heating appliances
Temperature Range and Tolerance
Design/Working Principles

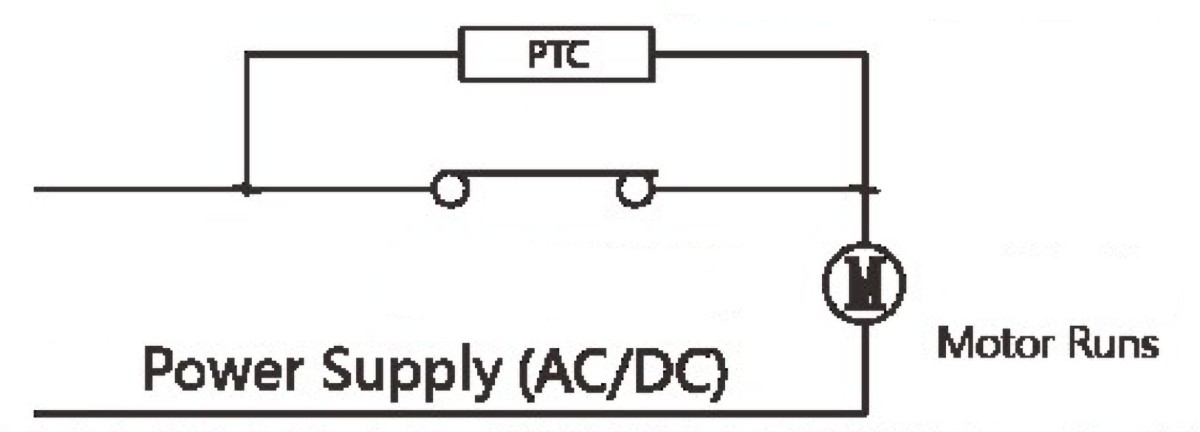

The 17AME thermal protector and the PTC element are connected in parallel, and this combined circuit is then connected in series with the load (motor). During normal motor operation, the PTC does not generate significant heat.

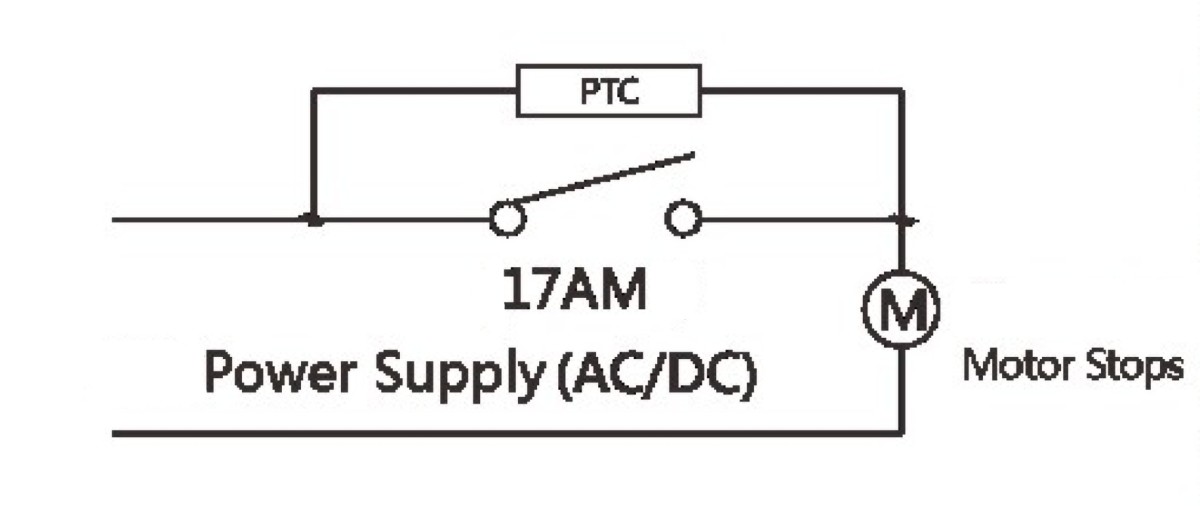

When an abnormal condition (overheating or overcurrent) occurs in the load, the 17AME thermal protector trips open. At this moment, the PTC element heats up, reaching a high temperature and a correspondingly high resistance. The sustained heat from the PTC keeps the 17AME protector in its tripped (open‑circuit) state, causing the load to stop operating.
After the power supply is manually disconnected, the PTC begins to cool down. Once it has cooled sufficiently after a period of time, the 17AME protector resets automatically. When power is subsequently reapplied, the load resumes normal operation.
