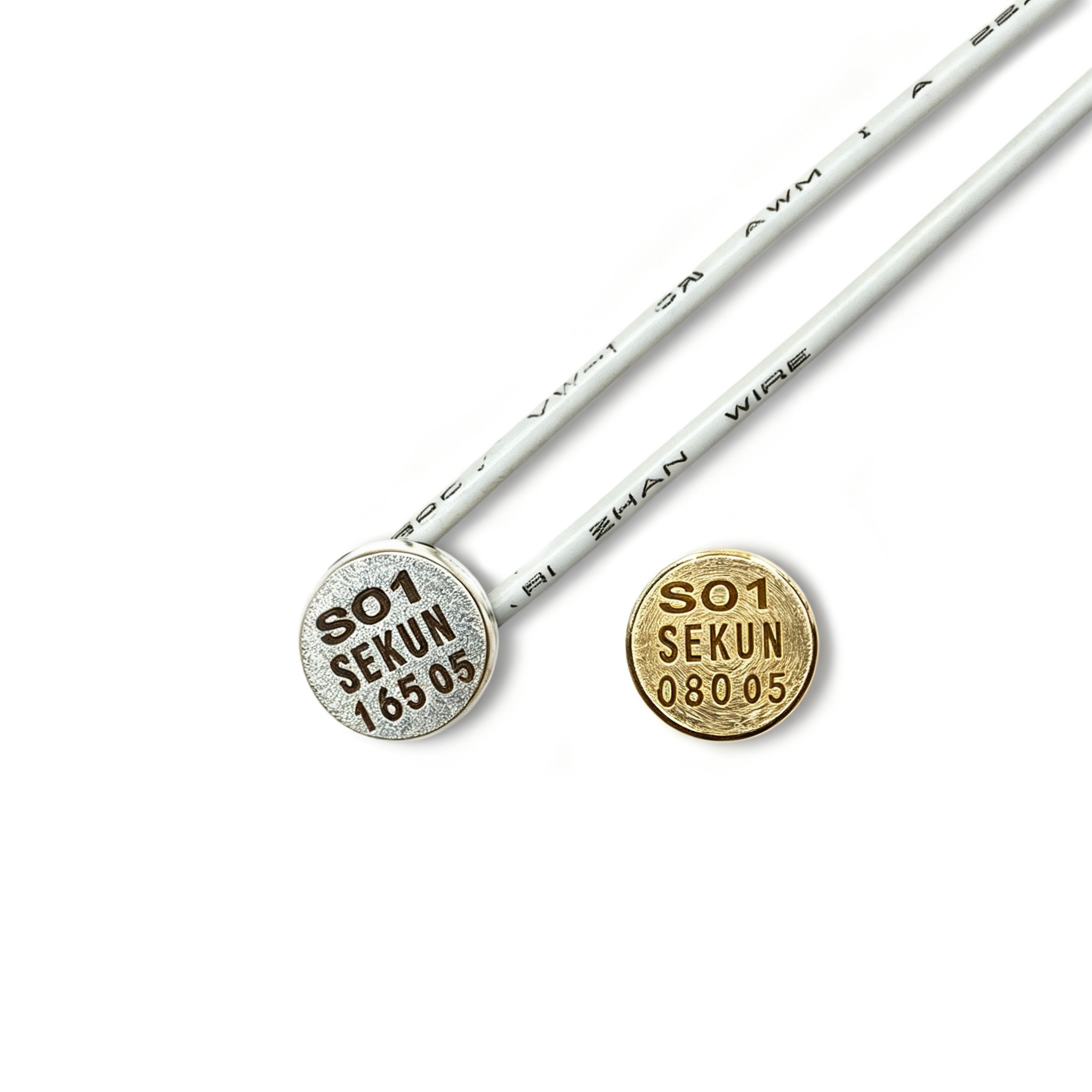

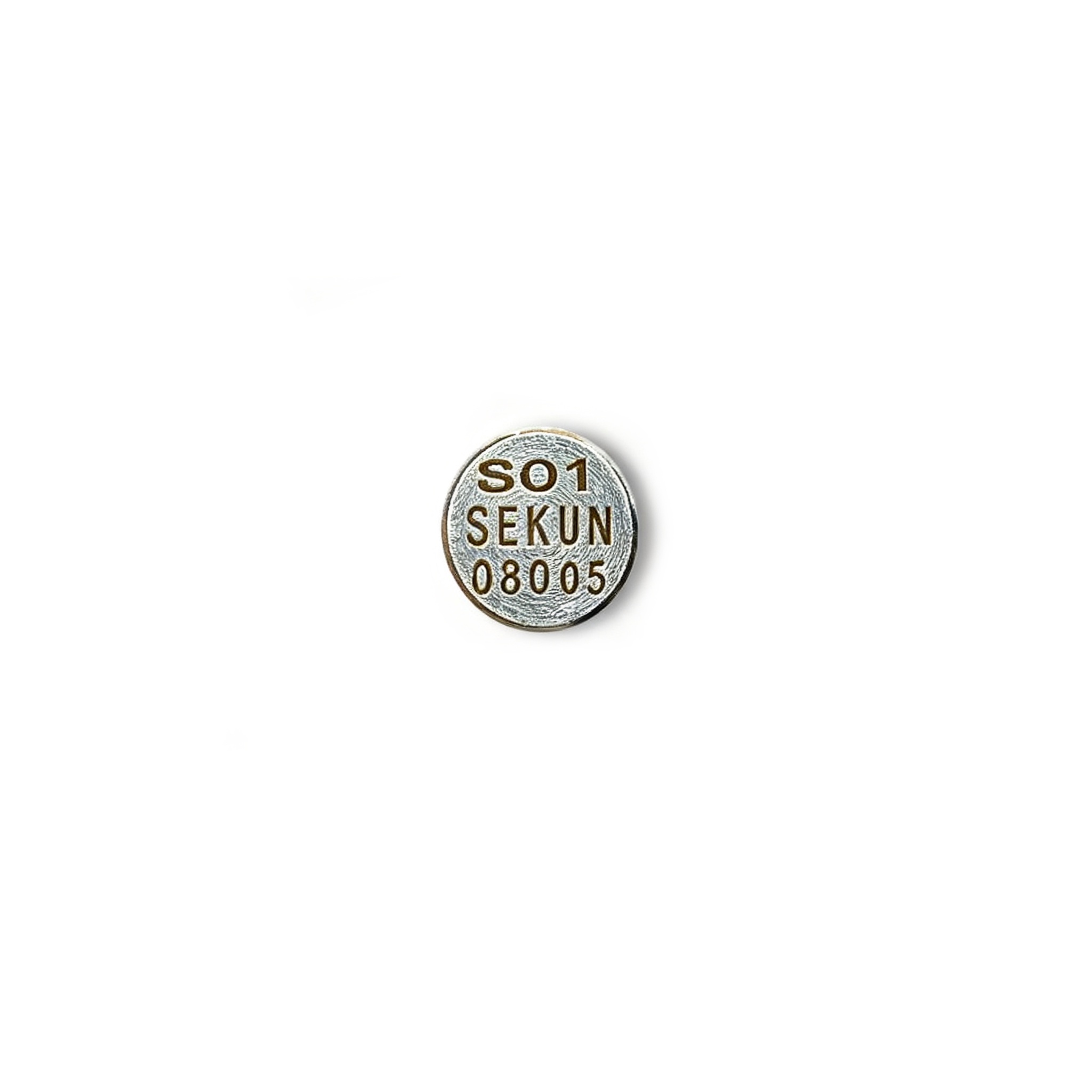

S01 Normally Closed/Normally Open Button-Type Protector
S01 Normally Closed/Normally Open Button-Type Protector
The TS01 button-type snap-action protector is a compact bimetallic thermostat. Utilizing the principle of instantaneous snap-action of a disc-shaped bimetallic strip under temperature influence, it drives rapid contact movement via its mechanism to achieve circuit disconnection or connection.
Focused on R&D and Manufacturing
Full range of product certifications
Serving global customers
Navigation
Related products
Send Us A Message
Product Features
Compact size for easy installation;
Low current effect, minimizing temperature differential caused by overcurrent;
Accurate and reliable temperature control.

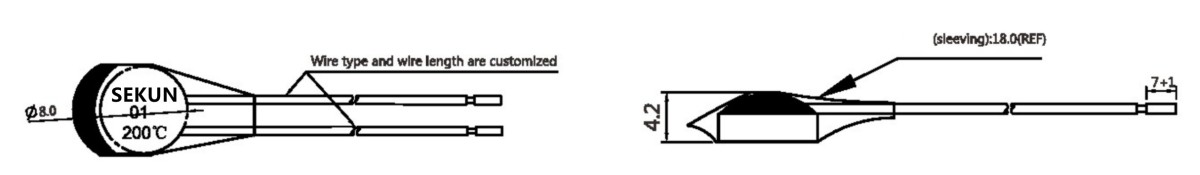

Dimensional Drawing
Electric Specifications
250V AC: 3A
125V AC: 6A
24V AC: 6A
Contact Resistance: ＜30mΩ
Dielectric Strength: 2KV
Applications
Transformers, Coils
Curtain Motors, Washing Machine Motors
Temperature Range and Tolerance
